Reference: CSN24PT/RR

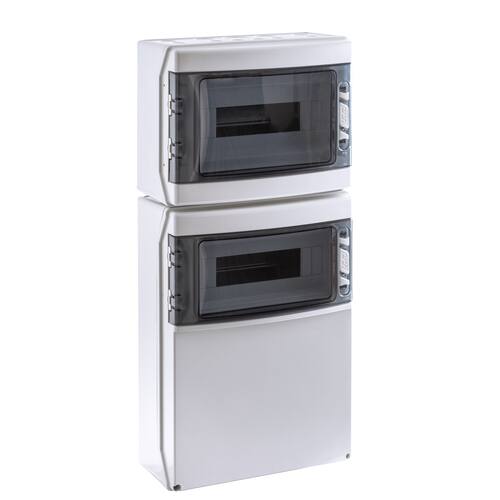

IP65 power socket box 2x12 (24) mod. With N+PE bars and transp. window
| Modular capacity | Dimensions (mm) | Window | |||
|---|---|---|---|---|---|
| No. modules | No. rows | Height | Width | Depth | |
| 24 | 2x12 | 688 | 310 | 148 | Transparent |
Technical data
| Technical data | Protection degree | IP65 | Resistance to impact | IK08 | Glow wire resistance (ºC) | 650 | Ball pressure test (ºC) | 70 | Temperatura máxima materiales (ºC) | +80 | Double insulation | Class II |
|---|
Accessories
| Image | Reference | Description | Data sheet |
|---|---|---|---|
| Handle | |||
 | 22109 | Box handle for mobile installations 140x40 | |
| Support | |||
 | 48205 | Metal support 656x600 | |
| Bushing | |||
 | 22273 | M25 bushing (IP67) | |
 | 22274 | M40 bushing (IP67) | |
| Cable gland | |||
 | 22568 | M16 cable gland (IP68-IP69) | |
 | 22569 | M20 cable gland (IP68-IP69) | |
 | 22577 | M50 cable gland (IP68-IP69) | |
 | 22580 | M25 cable gland (IP68-IP69) | |
 | 22582 | M32 cable gland (IP68-IP69) | |
 | 22584 | M40 cable gland (IP68-IP69) | |
| Cable gland nut | |||
 | 22566 | M16 cable gland nut | |
 | 22567 | M20 cable gland nut | |
 | 22578 | M50 cable gland nut | |
 | 22581 | M25 cable gland nut | |
 | 22583 | M32 cable gland nut | |
 | 22585 | M40 cable gland nut | |
| Cap with membrane | |||
 | 22589 | M20 membrane cap | |
 | 22591 | M32 membrane cap | |
 | 22690 | M25 membrane cap | |
| Lock | |||
 | 22010 | Keyless pressure lock with IDE logo (standard) | |
| Module covers | |||
 | 22590 | Module cover in grey RAL 7035 (6 modules) | |
Spare parts
| Image | Reference | Description | Data sheet |
|---|---|---|---|
| Knock-out covers | |||
 | 22270 | Plain cover* Removing the cover allows for the installation of bases. | |
 | 22271 | 16A cover** Screw-on cover for the installation of sockets | |
 | 22272 | Schuko-type cover* Screw-on and clipped cover for the installation of Schuko-type sockets and power supply RJ45 (Ref. 00145) | |
| Lock | |||
 | 22069 | 8-mm triangular lock + key (2 pcs.) | |
 | 92150 | Security lock + key | |
| Transparent window | |||
 | PT24CSN | 24 modules | |
| Screw-in neutral and earth bars | |||
 | 22003 | Support + neutral and earth bar 2x(2+16 entries) | |
| Spare parts | |||
 | 22012 | Window hinge | |
 | 22068 | Internal hinge for frame base | |
 | 22292 | Stainless steel screw (4x19) | |
 | 22293 | Plastic nut for power sockets | |
 | 22611 | 4x13 screws | |
 | 22650 | Hermetic caps | |
 | 22760 | M11x23 screws for frame-base closure | |
