Reference: SV4100

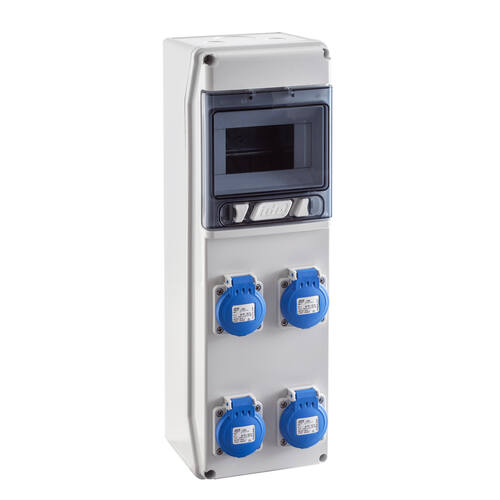

IP54 1x6 mod. Box with power sockets

← Return to the list
No. modules Components Montaje sobre caja
06<table> <tbody> <tr> <td>Nº</td> <td>Description</td> <td>IP</td> <td>Poles</td> <td>Current (A)</td> <td>Voltage (V)</td> </tr><tr> <td>4</td> <td>Schuko-type sockets</td> <td>54</td> <td>2P+TT</td> <td>16</td> <td>230</td> </tr> </tbody> </table>CSN6PT
Data sheet pdf
SV4100

Technical data

Technical data
Protection degreeIP54
Resistance to impactIK08
Box glow wire resistance (ºC)650
Double insulationClass II
Maximum voltage (V)1000 AC / 1500 DC
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1
