Reference: 41045

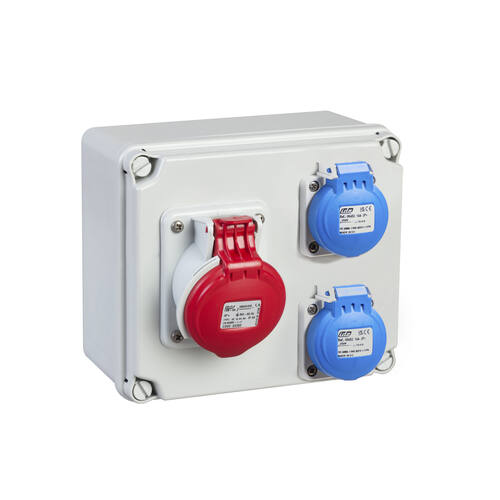

EL161

← Return to the list
Montaje sobre caja Components
EL161<table> <tbody> <tr> <td>Nº</td> <td>Description</td> <td>IP</td> <td>Poles</td> <td>Current (A)</td> <td>Voltage (V)</td> </tr><tr> <td>1</td> <td>Sloping flush-fit socket</td> <td>44</td> <td>3P+N+T</td> <td>16</td> <td>400</td> </tr> <tr> <td>1</td> <td>Schuko-type socket</td> <td>54</td> <td>2P+TT</td> <td>16</td> <td>230</td> </tr> </tbody> </table>
Data sheet pdf
41045

Technical data

Technical data
Protection degreeIP44
Resistance to impactIK07
Glow wire resistance (ºC)650
Ball pressure test (ºC)70
Double insulationClass II
Maximum voltage (V)1000 AC / 1500 DC
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 60670-22
