Reference: 42054

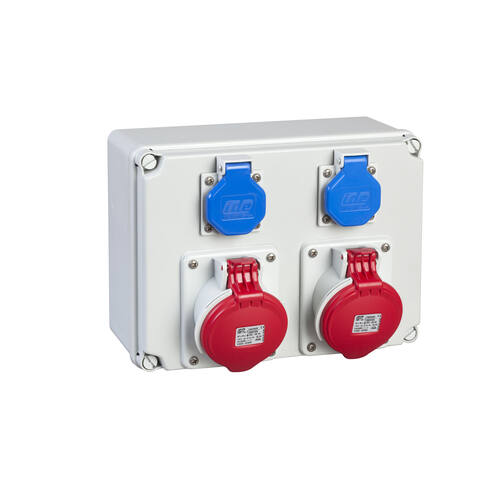

EL231
| Montaje sobre caja | Components |
|---|---|
| EL231 | <table> <tbody> <tr> <td>Nº</td> <td>Description</td> <td>IP</td> <td>Poles</td> <td>Current (A)</td> <td>Voltage (V)</td> </tr><tr> <td>2</td> <td>Sloping flush-fit sockets</td> <td>44</td> <td>3P+N+T</td> <td>16</td> <td>400</td> </tr> <tr> <td>2</td> <td>Schuko-type sockets</td> <td>54</td> <td>2P+TT</td> <td>16</td> <td>230</td> </tr> </tbody> </table> |
Technical data
| Technical data | Protection degree | IP44 | Resistance to impact | IK07 | Glow wire resistance (ºC) | 650 | Ball pressure test (ºC) | 70 | Double insulation | Class II | Maximum voltage (V) | 1000 AC / 1500 DC |
|---|---|
| Certificates and regulations | Directive | 2014/35/EU | Norms | UNE-EN 60670-22 |
