Reference: V8PA2/P67

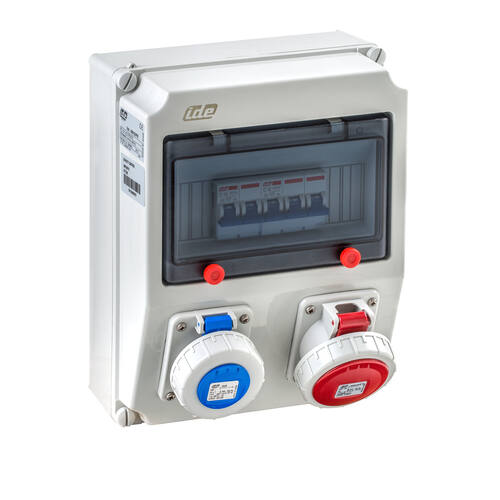

IP67 1x9 mod. Box with power sockets and wired protections

← Return to the list
No. modules Components Montaje sobre caja
09<table> <tbody> <tr> <td>Nº</td> <td>Description</td> <td>IP</td> <td>Poles</td> <td>Current (A)</td> <td>Voltage (V)</td> </tr><tr> <td>1</td> <td>Sloping flush-fit sockets</td> <td>67</td> <td>3P+T</td> <td>16</td> <td>400</td> </tr> <tr> <td>1</td> <td>Schuko-type socket</td> <td>67</td> <td>2P+TT</td> <td>16</td> <td>230</td> </tr> </tbody> </table>178P
Data sheet pdf
V8PA2/P67

Technical data

Technical data
Protection degreeIP67
Resistance to impactIK08
Glow wire resistance (ºC)650
Box glow wire resistance (ºC)650
Double insulationClass II
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1
