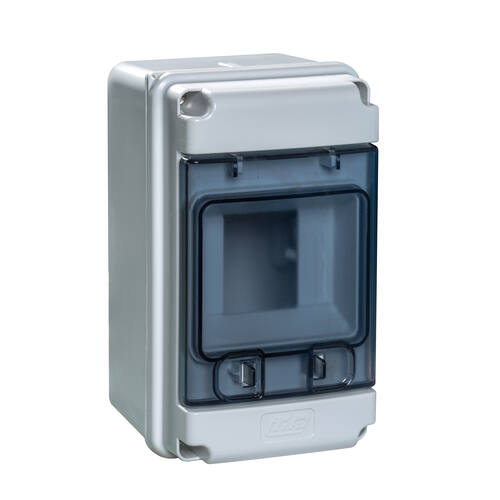

Distribution box IP65
Description
Distribution box IP65
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
11

Technical data

Technical data
Protection degreeIP65
Resistance to impactIK08
Glow wire resistance (ºC)650
Ball pressure test (ºC)70
Temperatura máxima materiales (ºC)+80
Double insulationClass II

Accessories

Image Reference Description Data sheet
Bushing
22273Cable gland M25 IP65 (bag of 1 unit)
22274Cable gland M40 (bag of 1 unit)
Cable gland
22580Cable gland M25 (Bag of 5 pcs)
22582Cable gland M32 (Bag of 5 pcs)
22584Cable gland M40 (Bag of 5 pcs)
Cable gland nut
22581Cable gland nut M25 (Bag of 10 pcs)
22583Cable gland nut M32 (Bag of 10 pcs)
22585Cable gland nut M40 (Bag of 10 pcs)
Cap with membrane
22589Membrane plug M20 (Bag of 10 pcs)
22591Membrane plug M32 (Bag of 10 pcs)
22690Membrane plug M25 (Bag of 10 pcs)
Screw-in neutral and earth bars
22019Support and busbar PE or neutral for CDN4G boxes (5+1)
Lock
22010Standard lock

Spare parts

Image Reference Description Data sheet
Transparent window

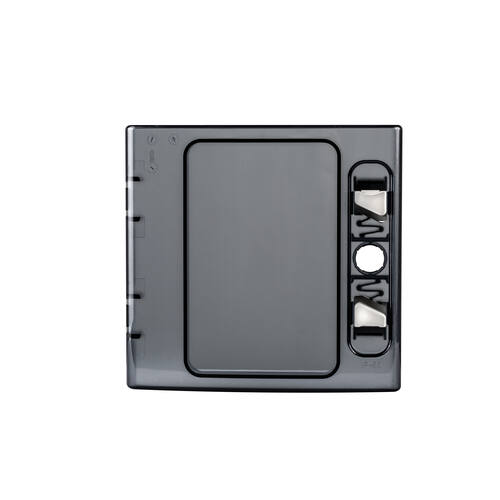

PT4CDNG Transparent window 4 modules (for enclosure CDN4G)
Module covers
22590 Module cover gray 6 modules (Bag of 50 pcs)
Lock
22069 Triangle lock with key (bag of 2 pcs)
92150 Security lock with safety key
Spare parts
22012 Window hinge (bag of 12 pcs.)
22068 Inside hinge frame/base (bag of 10 pcs)
22200 Covers for D88 boxes (bag of 125 units)
22611 Screws M4x13 for IP65 busbar holder (Bag of 50 pcs)
22650 Sealing plug (Bag of 40 pcs)
