| IP30-IP40 steel distribution cabinets. Surface. Combinable | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reference | Modular capacity | Dimensions (mm) | Usable space (mm) | Door type | Image | Drawings | FT | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Height | Width | Depth | Height | dxf | 3D | edz | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 40ENL48-72 | 48-72 | 510 | 670 | 212 | 450 | No door | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 40ENL72-96 | 72-96 | 710 | 670 | 212 | 650 | No door | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 40ENL96-120 | 96-120 | 910 | 670 | 212 | 850 | No door | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 40ENL120-168 | 120-168 | 1110 | 670 | 212 | 1050 | No door | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 40ENL144-192 | 144-192 | 1310 | 670 | 212 | 1250 | No door | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Range
StandardIP30 combinable surface cabinets without door
IP40 combinable surface cabinets with opaque or transparent door
Modular capacity for the whole range of products: 48 – 72 – 96 – 120 – 144 – 168 – 192
Materials
Cabinet, sides, top and bottom covers for surface cabinets and frames for flush-fit cabinets manufactured in cold-rolled steel with a thickness of 12 mmOpaque doors manufactured in cold-rolled steel; 1-mm thick surface cabinets and 12-mm thick flush-fit cabinets and transparent doors manufactured in tinted 4-mm tempered safety glass
Chassis for compact surface cabinets made of 15 2 mm thick galvanised steel sheet
Finishes
Textured epoxy-polyester paintSupply
IP30-IP40 combinable surface cabinetsThey are supplied disassembled in a single packaging that contains enclosure, sides, top and bottom cover, cable entry cover and accessory bag (insulating caps to permit reversible doors, wall mounting supports, reinforcement buttons, mass continuity clamps and rulers for fitting rails)
The doors are supplied separately if requested, with both locks assembled and with accessory bag (door accessory bag: Hinges and locks, mounting screws, lock pins and key)
Covers and DIN rails
They can be ordered as a Kit: Covers+ DIN rails
Separately: modular or plain lids, as well as DIN rails plus assembly supports for surface cabinets (48013) or for flush-fit cabinets (48014)
| Image | Reference | Description | Data sheet |
|---|---|---|---|
| Modular cover kit. PLASTIC (Surface) | |||
 | S120P150 | Surface plastic cover kits + 5 DIN rails | |
 | S120P200 | Surface plastic cover kits + 5 DIN rails | |
 | S144P200 | Surface plastic cover kits + 6 DIN rails | |
 | S168P150 | Surface plastic cover kits + 7 DIN rails | |
 | S192P150 | Surface plastic cover kits + 8 DIN rails | |
 | S48P200 | Surface plastic cover kits + 2 DIN rails | |
 | S72P150 | Surface plastic cover kits + 3 DIN rails | |
 | S72P200 | Surface plastic cover kits + 3 DIN rails | |
 | S96P150 | Surface plastic cover kits + 4 DIN rails | |
 | S96P200 | Surface plastic cover kits + 4 DIN rails | |
| Doors for IP40 cabinets | |||
 | PO40SUP120-168 | Opaque door for surface-mounted cabinet IP40 | |
 | PO40SUP144-192 | Opaque door for surface-mounted cabinet IP40 | |
 | PO40SUP48-72 | Opaque door for surface-mounted cabinet IP40 | |
 | PO40SUP72-96 | Opaque door for surface-mounted cabinet IP40 | |
 | PO40SUP96-120 | Opaque door for surface-mounted cabinet IP40 | |
 | PT40SUP120-168 | Transparent door for surface-mounted cabinet IP40 | |
 | PT40SUP144-192 | Transparent door for surface-mounted cabinet IP40 | |
 | PT40SUP48-72 | Transparent door for surface-mounted cabinet IP40 | |
 | PT40SUP72-96 | Transparent door for surface-mounted cabinet IP40 | |
 | PT40SUP96-120 | Transparent door for surface-mounted cabinet IP40 | |
| Modular cover kit. METALLIC (Surface) | |||
 | S120M150 | Surface metal cover kits + 5 DIN rails | |
 | S120M200 | Surface metal cover kits + 5 DIN rails | |
 | S144M200 | Surface metal cover kits + 6 DIN rails | |
 | S168M150 | Surface metal cover kits + 7 DIN rails | |
 | S192M150 | Surface metal cover kits + 8 DIN rails | |
 | S48M200 | Surface metal cover kits + 2 DIN rails | |
 | S72M150 | Surface metal cover kits + 3 DIN rails | |
 | S72M200 | Surface metal cover kits + 3 DIN rails | |
 | S96M150 | Surface metal cover kits + 4 DIN rails | |
 | S96M200 | Surface metal cover kits + 4 DIN rails | |
| Modular hinged plastic cover | |||
| TM150 | Modular cover | ||
| TM200 | Modular cover | ||
| Plain hinged plastic cover | |||
| TC150 | Blind cover | ||
| TC200 | Blind cover | ||
| TC50 | Blind cover | ||
| Modular fixed metal cover | |||
 | TMM150F | Fixed modular cover | |
 | TMM200F | Fixed modular cover | |
 | TMM300F | Fixed modular cover | |
 | TMM400F | Fixed modular cover | |
| Plain fixed metal cover | |||
 | TCM100F | Fixed blind covers | |
 | TCM150F | Fixed blind covers | |
 | TCM200F | Fixed blind covers | |
 | TCM300F | Fixed blind covers | |
 | TCM400F | Fixed blind covers | |
 | TCM50F | Fixed blind covers | |
| Moulded-case circuit breaker cover (MCCB) | |||
 | TMCB200 | 200 mm cover for MCCB | |
 | TMCB250 | 250 mm cover for MCCB | |
 | TMCB300 | 300 mm cover for MCCB | |
 | TMCB400 | 400 mm cover for MCCB | |
| Molded-case plate (MCCB) | |||
 | PMCB200 | Adjustable plate for molded box 200 mm (MCCB) | |
 | PMCB250 | Adjustable plate for molded box 250 mm (MCCB) | |
 | PMCB300 | Adjustable plate for molded box 300 mm (MCCB) | |
 | PMCB350 | Adjustable plate for molded box 350 mm (MCCB) | |
| Support for moulded box plate (MCCB) | |||
 | 48345/250 | Mounting plate brackets for MCCB | |
| Cover kit for busbar | |||

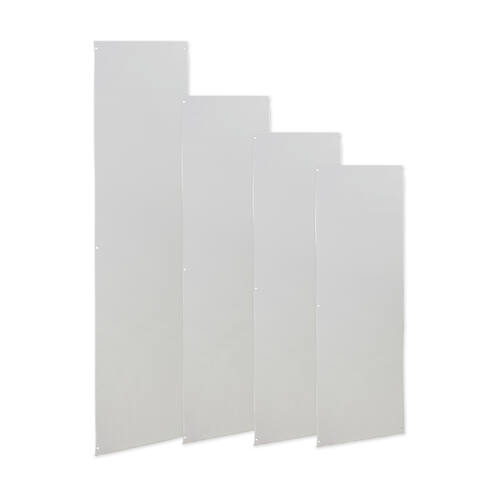

 | 48663 | Cover kit for busbar 120 modules | |
 | 48664 | Cover kit for busbar 144 modules | |
| Moulded-case circuit breaker and busbar cover kit | |||
 | 48703 | Moulded-case circuit breaker and busbar cover kit 120 modules | |
 | 48704 | Moulded-case circuit breaker and busbar cover kit 144 modules | |
| Combination + extension ENL cabinets | |||
 | EE67111 | Combination and extension for combinable cabinet 120-168 modules | |
 | EE67113 | Combination and extension for combinable cabinet 144-192 modules | |
| Vertical trunking support | |||
 | 48243 | Vertical trunking support | |
| Wall-mounting support | |||
 | 48427 | Wall-mounting support | |
| Partial metal mounting plate | |||
 | PLC450 | Partial smooth metal plate 450 mm | |

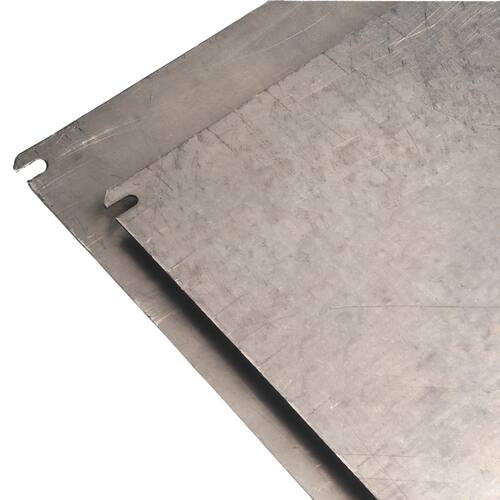

 | PLC600 | Partial smooth metal plate 600 mm | |
 | PLM200 | Partial smooth metal plate 200 mm | |
 | PLM300 | Partial smooth metal plate 300 mm | |
| Total metal mounting plate | |||
 | PLM1050 | Total smooth metal mounting plate 1050 mm | |
 | PLM1250 | Total smooth metal mounting plate 1250 mm | |
 | PLM850 | Total smooth metal mounting plate 850 mm | |
| Rail and plate mounting elements | |||
 | 48340 | Adjustable mounting plate fixing elements for surface cabinets | |
| Standard locks | |||
 | 48445 | 5-mm double-bit lock (surface) | |
| Locks with key | |||
 | 48447 | 1/4 turn mailbox-type lock + key code 333 (surface) | |
| Wing nut locks | |||
 | 48458 | 1/4 turn lock + wing nut + key code 333 (surface) | |
 | 48542 | 1/4 turn lock + fixed wing nut (surface) | |
| Horizontal trunking support | |||
 | 49368 | Horizontal duct support | |
