IP66 Rolled steel wall-mounting cabinets

GNT12010030

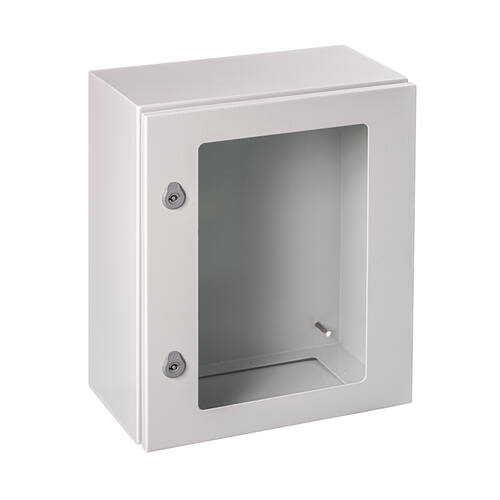

IP66 Rolled steel wall-mounting cabinet 1200x1000x300 transparent door with mounting plate
Dimensions (mm) Door type With mounting plate
Height Width Depth
12001000300Transparente únicaYes
11

Technical data

Technical data
Protection degreeIP66
NEMA degree of protection1, 4, 12
Resistance to impactIK09
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
48414Fixed 1/4 turn butterfly lock 1P
Plain metal mounting plates
PL120100
Plain insulating mounting plates
PLB120100
Perforated metal mounting plates
PLU120100
Plate height adjuster
48228Pack 4 risers + 4 anti-rotation nuts
Depth support profile for 19” FIXED frame
PBR300
Height adjustment element
48716
Handle
48545Triangle insert lock + triangle key 6.5
Plinths (galvanised steel)
ZCLA1010030
ZCLA2010030
Plinth cable support
48498
Standard cable entry covers
TS1490
Cable entry lid for FL21-type frame
TF1490
FL21-type frame and cover
TFL21/00Blind lid FL21
TFL21/06FL21 type membrane (6 inputs)
TFL21/25FL21 type membrane (25 inputs)
TFL21/35FL21 type membrane (35 inputs)
TFL21/50FL21 type membrane (50 inputs)
Canopy (galvanised steel)
TEJ10030
Inner door (rolled steel)
PIN120100
Rods
48387Bars for 800 mm high cabinet
Profile for deep support
PB300
Door switch with push button
48609Magnetic door switch
48610Door switch with screw fixation
Door switch with LED with push button
48618
48619
Fixed trays
BNF19-1U/200Fixed tray L=200 mm
Wall-mounting support
48423External hanger fixing (Pack 4 pcs)
External fixing support
48422Mast support for cabinets 700-800 mm wide
Lifting eyebolts
48475Central support for full plate (Pack 2 pcs)
Support stand
49730Cold-rolled painted steel support RAL 7035
Standard locks
48450Polyamide double latch key 5 mm
Wing nut locks
484131/4 turn butterfly lock with key code 333 3P (Without bars)
48410Double 5 mm ATEX pallet lock 3P (Without bars)
48411JIS 1/4 turn butterfly lock with key 1P
48591Quarter-turn mailbox lock with key code 1242E 3P (without rods)
48592Quarter-turn wing knob lock with key code 405 1P
Triangle locks
48415Fixed 1/4 turn butterfly lock 3P (Without bars)
48547Ball handle
Triangle lock for padlock
48404Double 5 mm stainless steel AISI 316L pallet lock 3P (Without bars)
Interlocking for padlock
29266Stainless steel interlock lock
Keys
48449Quarter-turn mailbox type closure with key code 333 (surface)

Spare parts

Image Reference Description Data sheet
Spare hinge
48635 Spare hinge Argenta (1 pc. + 1 pin)
