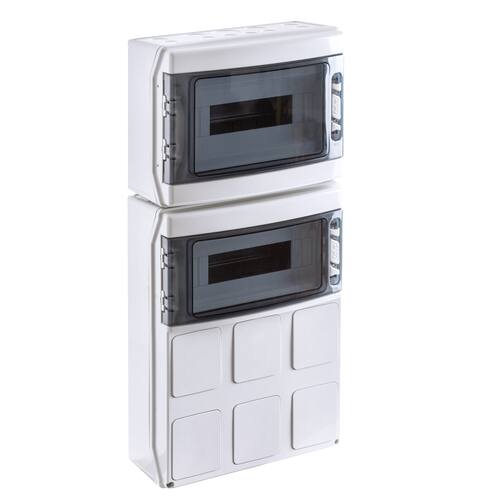

PCSN24PT/RR

Modular capacity		No. pre-punched covers	Dimensions (mm)			Window
No. modules	No. rows	No. pre-punched covers	Height	Width	Depth	Window
24	2x12	10	688	310	148	Transparent

Technical data
Protection degree	IP65
Resistance to impact	IK08
Glow wire resistance (ºC)	650
Ball pressure test (ºC)	70
Temperatura máxima materiales (ºC)	+80
Double insulation	Class II

Image	Reference	Description
Accessories
	22109	Box handle for mobile installations 140x40
Module covers
	22590	Module cover in grey RAL 7035 (6 modules)
Support
	48205	Metal support 656x600
Bushing
	22273	M25 bushing (IP67)
	22274	M40 bushing (IP67)
Cable gland
	22568	M16 cable gland (IP68-IP69)
	22569	M20 cable gland (IP68-IP69)
	22577	M50 cable gland (IP68-IP69)
	22580	M25 cable gland (IP68-IP69)
	22582	M32 cable gland (IP68-IP69)
	22584	M40 cable gland (IP68-IP69)
Cable gland nut
	22566	M16 cable gland nut
	22567	M20 cable gland nut
	22578	M50 cable gland nut
	22581	M25 cable gland nut
	22583	M32 cable gland nut
	22585	M40 cable gland nut
Cap with membrane
	22589	M20 membrane cap
	22591	M32 membrane cap
	22690	M25 membrane cap
Lock
	22010	Keyless pressure lock with IDE logo (standard)

Image	Reference	Description
Transparent window

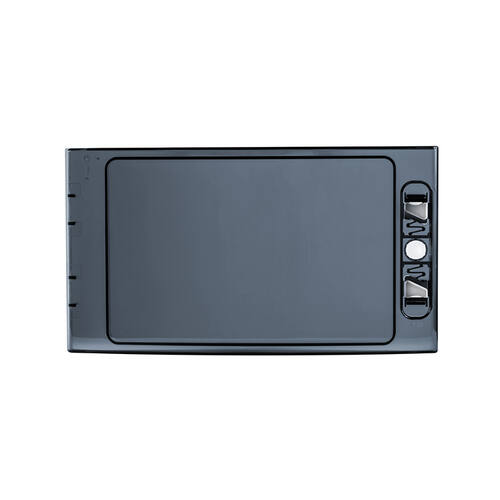

	PT24CSN	24 modules
Knock-out covers
	22270	Plain cover* Removing the cover allows for the installation of bases.
	22271	16A cover** Screw-on cover for the installation of sockets
	22272	Schuko-type cover* Screw-on and clipped cover for the installation of Schuko-type sockets and power supply RJ45 (Ref. 00145)
Screw-in neutral and earth bars
	22003	Support + neutral and earth bar 2x(2+16 entries)
Lock
	22069	8-mm triangular lock + key (2 pcs.)
	92150	Security lock + key
Spare parts
	22012	Window hinge
	22068	Internal hinge for frame base
	22292	Stainless steel screw (4x19)
	22293	Plastic nut for power sockets
	22611	4x13 screws
	22650	Hermetic caps
	22760	M11x23 screws for frame-base closure

Reference: PCSN24PT/RR
