IP65 Boxes for industrial sockets with knock-out lids

PCSN9PT

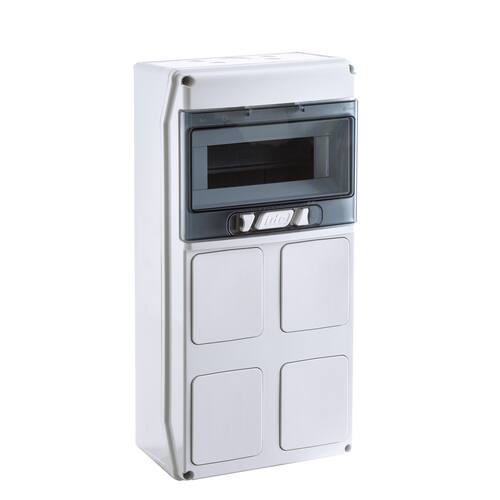

IP65 Box for industrial sockets with knock-out covers 1x9 modules
Description
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
11IP65 Boxes for industrial sockets with knock-out lids

Technical data

Technical data
Protection degreeIP65
Resistance to impactIK08
Glow wire resistance (ºC)650
Ball pressure test (ºC)70
Temperatura máxima materiales (ºC)+80
Double insulationClass II

Accessories

Image Reference Description Data sheet
Accessories
22109Double Schuko socket with support
Module covers
22590Module cover gray 6 modules (Bag of 50 pcs)
Support
48205Metal support 656x600 mm
Bushing
22273Cable gland M25 IP65 (bag of 1 unit)
22274Cable gland M40 (bag of 1 unit)
Cable gland
22568Cable gland M16 (Bag of 5 pcs)
22569Cable gland M20 (Bag of 5 pcs)
22577Cable gland M50 (Bag of 5 pcs)
22580Cable gland M25 (Bag of 5 pcs)
22582Cable gland M32 (Bag of 5 pcs)
22584Cable gland M40 (Bag of 5 pcs)
Cable gland nut
22566Cable gland nut M16 (Bag of 10 pcs)
22567Cable gland nut M20 (Bag of 10 pcs)
22578Cable gland nut M50 (Bag of 10 pcs)
22581Cable gland nut M25 (Bag of 10 pcs)
22583Cable gland nut M32 (Bag of 10 pcs)
22585Cable gland nut M40 (Bag of 10 pcs)
Cap with membrane
22589Membrane plug M20 (Bag of 10 pcs)
22591Membrane plug M32 (Bag of 10 pcs)
22690Membrane plug M25 (Bag of 10 pcs)
Screw-in neutral and earth bars

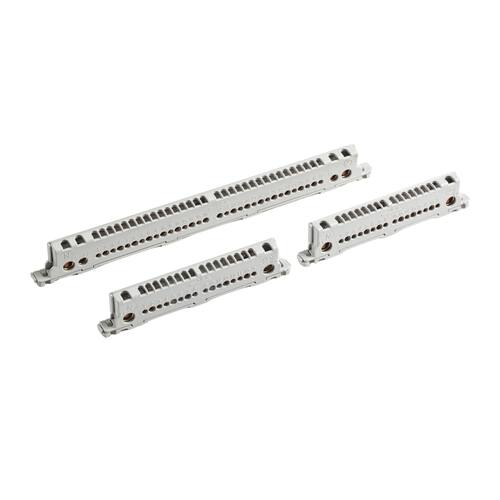

22001Support and busbar PE+N for CDN8PT boxes 2x(1+8)
Lock
22010Standard lock

Spare parts

Image Reference Description Data sheet
Transparent window

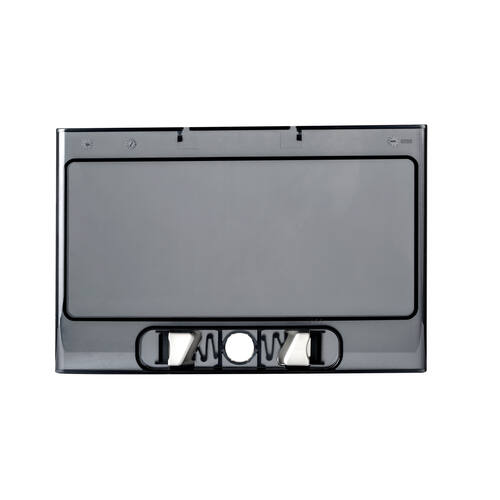

PT9CSN Transparent window 9 modules
Lock
22069 Triangle lock with key (bag of 2 pcs)
92150 Security lock with safety key
Spare parts
22012 Window hinge (bag of 12 pcs.)
22068 Inside hinge frame/base (bag of 10 pcs)
22293 Nut for socket (bag of 100 units)
22650 Sealing plug (Bag of 40 pcs)
22760 Screw M11x23 for frame-base lock (Bag of 10 pcs)
