Reference: PCSN9PT/RR

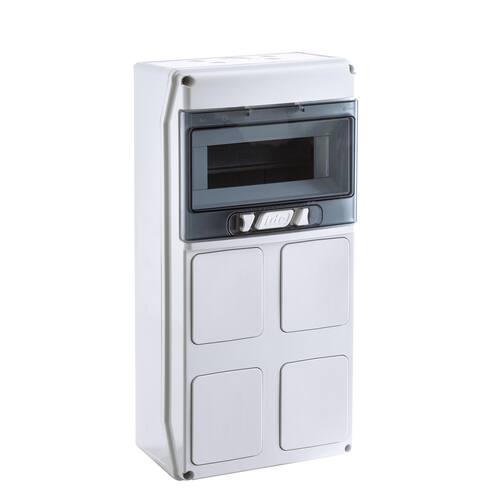

IP65 power socket box 1x9 mod. Knock-out covers, transp. window and PE+N

← Return to the list
Modular capacity No. pre-punched covers Dimensions (mm) Window
No. modules No. rows Height Width Depth
91x98436210137Transparent
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
PCSN9PT/RR

Technical data

Technical data
Protection degreeIP65
Resistance to impactIK08
Glow wire resistance (ºC)650
Ball pressure test (ºC)70
Temperatura máxima materiales (ºC)+80
Double insulationClass II

Accessories

Image Reference Description Data sheet
Accessories
22109Box handle for mobile installations 140x40
Module covers
22590Module cover in grey RAL 7035 (6 modules)
Support
48205Metal support 656x600
Bushing
22273M25 bushing (IP67)
22274M40 bushing (IP67)
Cable gland
22568M16 cable gland (IP68-IP69)
22569M20 cable gland (IP68-IP69)
22577M50 cable gland (IP68-IP69)
22580M25 cable gland (IP68-IP69)
22582M32 cable gland (IP68-IP69)
22584M40 cable gland (IP68-IP69)
Cable gland nut
22566M16 cable gland nut
22567M20 cable gland nut
22578M50 cable gland nut
22581M25 cable gland nut
22583M32 cable gland nut
22585M40 cable gland nut
Cap with membrane
22589M20 membrane cap
22591M32 membrane cap
22690M25 membrane cap
Lock
22010Keyless pressure lock with IDE logo (standard)

Spare parts

Image Reference Description Data sheet
Transparent window
PT9CSN 9 modules
Knock-out covers
22270 Plain cover* Removing the cover allows for the installation of bases.
22271 16A cover** Screw-on cover for the installation of sockets
22272 Schuko-type cover* Screw-on and clipped cover for the installation of Schuko-type sockets and power supply RJ45 (Ref. 00145)
Screw-in neutral and earth bars
22001 Support + neutral and earth bar 2x(1+8 entries)
Lock
22069 8-mm triangular lock + key (2 pcs.)
92150 Security lock + key
Spare parts
22012 Window hinge
22068 Internal hinge for frame base
22292 Stainless steel screw (4x19)
22293 Plastic nut for power sockets
22611 4x13 screws
22650 Hermetic caps
22760 M11x23 screws for frame-base closure
