Reference: COM40PR67/P

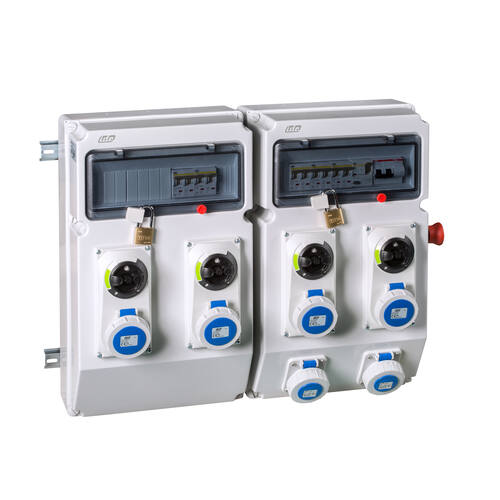

Temp. site distrib. board on Pryma enclosure IP65 2x13 (26) mod. 1-phase 40A

← Return to the list
Tensión eléctrica (AC) In (A) Components
Single-phase40<table> <tbody> <tr> <td>Nº</td> <td>Description</td> <td>IP</td> <td>Poles</td> <td>Current (A)</td> <td>Voltage (V)</td> </tr><tr> <td>4</td> <td>Interlocking sockets</td> <td>67</td> <td>2P+T</td> <td>16</td> <td>230</td> </tr> <tr> <td>2</td> <td>Schuko-type socket</td> <td>67</td> <td>2P+TT</td> <td>16</td> <td>230</td> </tr> <tr> <td>1</td> <td>Emergency stop button</td> <td>65</td> <td> -</td> <td> -</td> <td> -</td> </tr> </tbody> </table>
Data sheet pdf
COM40PR67/P

Technical data

Technical data
Protection degreeIP65
Resistance to impactIK08
Box glow wire resistance (ºC)650
Glow wire resistance in sockets (ºC)960
Double insulationClass II
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 61439-1; UNE-EN 61439-4 (en los requisitos
