Reference: DFF72PO/PH

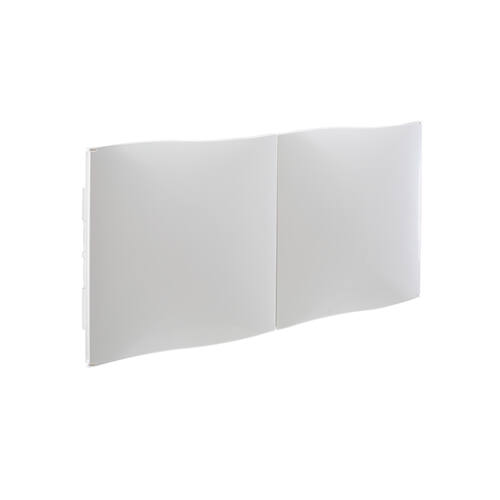

IP40 distribution box flush-fit hollow wall 4x18 (72) modules

← Return to the list
Modular capacity Door type Dimensions (mm)
No. modules No. rows Height Width Depth
0724x18Opaque380851105
Plan pdf pdf
Plan dxf dxf
Data sheet pdf
DFF72PO/PH

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)850
Ball pressure test (ºC)70
Double insulationClass II

Accessories

Image Reference Description Data sheet
Accessories
22103Link piece for DFF flush-fit boxes (hollow and conventional walls. Horizontal and vertical position
Module covers
22600Module cover in white RAL 9003 (6 modules)
Screw-in neutral and earth bars
22004Support + neutral and earth bar 2x(2+24 entries)

Spare parts

Image Reference Description Data sheet
Spare parts
22100 Hollow wall fixing claws
