Reference: GPE12PT

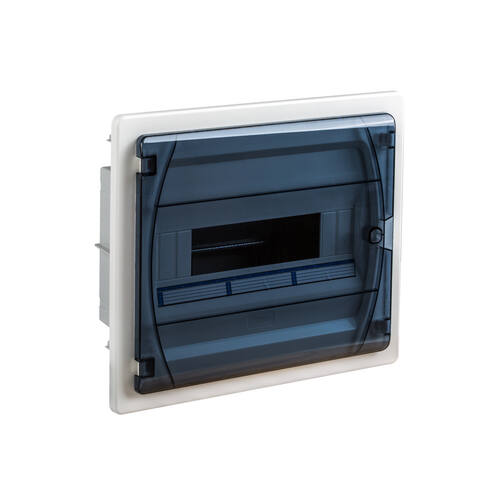

IP40 flush-fit brick wall distribution box 1x12 modules. Transparent door

← Return to the list
Modular capacity Door type Dimensions (mm)
No. modules No. rows Height Width Depth
121x12Transparent28431697
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
GPE12PT

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)650
Ball pressure test (ºC)70
Double insulationClass II

Accessories

Image Reference Description Data sheet
Various accessories
22150Joining element for flush-fit mounted boxes (hollow and conventional walls). Vertical and horizontal position
Locks
220151/4 turn mailbox type lock with key
Screw-in neutral and earth bars
22031Support + neutral and earth bar 2x(2+12 entries)
Push-in neutral and earth bars
22041Support + neutral and earth bar push-in 4x(1+7 entries)
Screw-in neutral and earth bars
22019Support + neutral or earth bar (1+5 entries)
Spare parts
220739.5x25 level

Spare parts

Image Reference Description Data sheet
Transparent doors
PT12GP Transparent door 12 modules
Spare parts
22075 Hinge
