IP40 Flush-fit plastic distribution boxes

GPE18PO/PH/RR

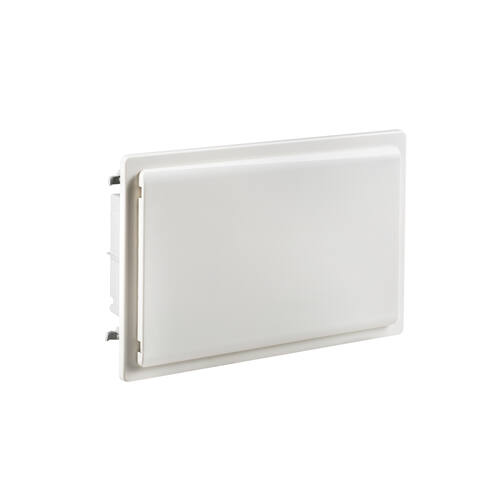

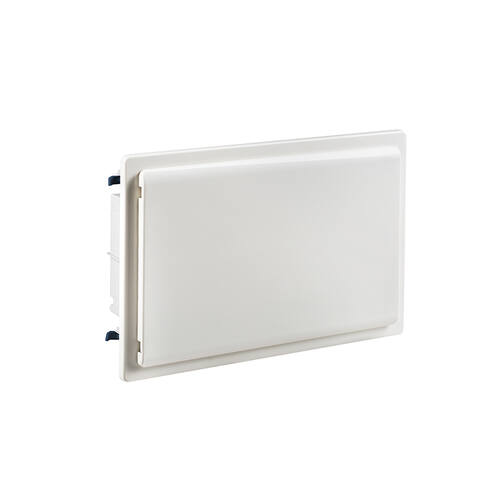

IP40 Flush-fit hollow walls distribution box 1x18 modules white door PE+N
Description
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
11IP40 Flush-fit plastic distribution boxes

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)850
Ball pressure test (ºC)70
Double insulationClass II

Accessories

Image Reference Description Data sheet
Various accessories
22150Quarter-turn screws with and without arrow (bag of 4 units – 2 with arrow + 2 without)
Locks
22015Lock with key
Screw-in neutral and earth bars
22032Support and busbar for 18 modules boxes 2x(2+16)
Push-in neutral and earth bars
22042Support and push-in busbar for 18 modules boxes 4x(1+7)
Screw-in neutral and earth bars
22019Support and busbar PE or neutral for CDN4G boxes (5+1)
Spare parts
22073Level (bag of 10 pcs)

Spare parts

Image Reference Description Data sheet
White doors
PO18GP Opaque door 18 modules
Screw-in neutral and earth bars
22032 Support and busbar for 18 modules boxes 2x(2+16)
22019 Support and busbar PE or neutral for CDN4G boxes (5+1)
Spare parts
22075 Hinge (bag of 10 pcs)
22100 Fixing claws for hollow walls (bag of 4 pcs)
