IP40 Flush-fit plastic distribution boxes

GPE24PT

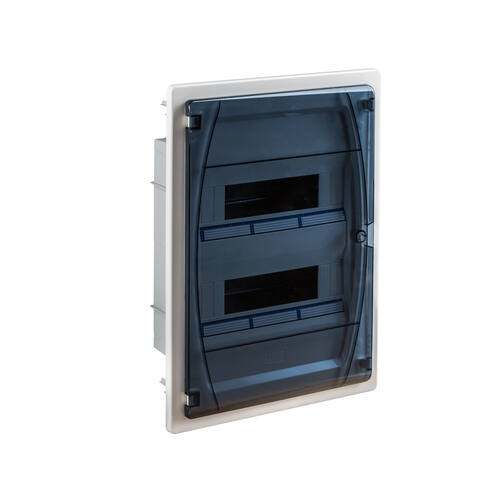

IP40 Flush-fit distribution box 2x12 (24) modules transparent door
Description
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
11IP40 Flush-fit plastic distribution boxes

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)650
Ball pressure test (ºC)70
Double insulationClass II

Accessories

Image Reference Description Data sheet
Various accessories
22150Quarter-turn screws with and without arrow (bag of 4 units – 2 with arrow + 2 without)
Locks
22015Lock with key
Screw-in neutral and earth bars
22033Support and busbar for 24 modules boxes 2x(2+16)
Push-in neutral and earth bars
22043Support and push-in busbar for 24 modules boxes 6x(1+7)
Screw-in neutral and earth bars
22019Support and busbar PE or neutral for CDN4G boxes (5+1)
Spare parts
22073Level (bag of 10 pcs)

Spare parts

Image Reference Description Data sheet
Transparent doors
PT24GP Transparent door 24 modules
Spare parts
22075 Hinge (bag of 10 pcs)
