Reference: GPE24PT/PH

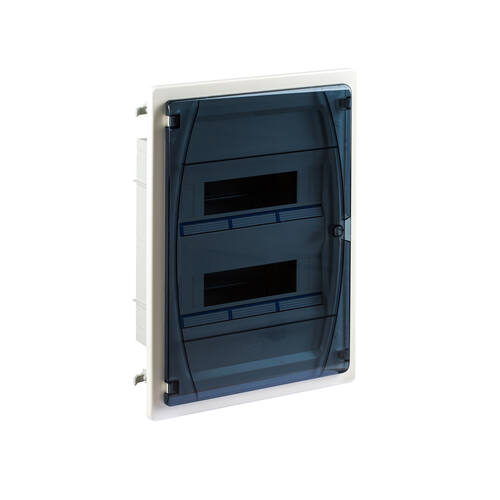

IP40 flush-fit hollow wall distrib. box 2x12 (24) modules. Transparent door

← Return to the list
Modular capacity Door type Dimensions (mm)
No. modules No. rows Height Width Depth
242x12Transparent44931697
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
GPE24PT/PH

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)850
Ball pressure test (ºC)70
Double insulationClass II

Accessories

Image Reference Description Data sheet
Various accessories
22150Joining element for flush-fit mounted boxes (hollow and conventional walls). Vertical and horizontal position
Locks
220151/4 turn mailbox type lock with key
Screw-in neutral and earth bars
22033Support + neutral and earth bar 2x(2+16 entries)
Push-in neutral and earth bars
22043Support + neutral and earth bar push-in 6x(1+7 entries)
Screw-in neutral and earth bars
22019Support + neutral or earth bar (1+5 entries)
Spare parts
220739.5x25 level

Spare parts

Image Reference Description Data sheet
Transparent doors
PT24GP Transparent door 24 modules
Spare parts
22075 Hinge
22100 Hollow wall fixing claws
