IP40 Flush-fit plastic distribution boxes

GPE36PO3F

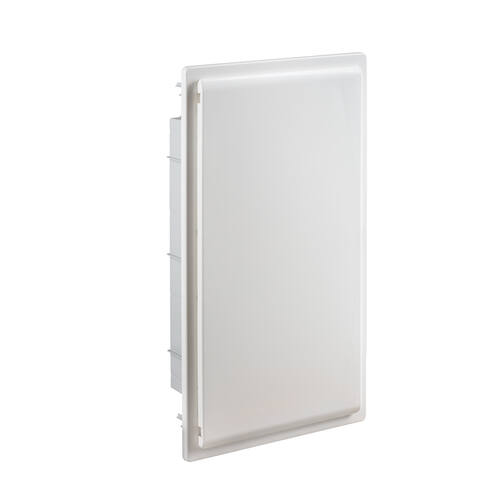

IP40 Flush-fit distribution box 3x12 (36) modules white door
Description
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
11IP40 Flush-fit plastic distribution boxes

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)650
Ball pressure test (ºC)70
Double insulationClass II

Accessories

Image Reference Description Data sheet
Various accessories
22150Quarter-turn screws with and without arrow (bag of 4 units – 2 with arrow + 2 without)
Locks
22015Lock with key
Screw-in neutral and earth bars
22034Support and busbar for 36 modules boxes (3 rows) 2x(2+24)
Push-in neutral and earth bars
22084Support and automatic busbar for 36 modules boxes 2x(4+28)
Screw-in neutral and earth bars
22019Support and busbar PE or neutral for CDN4G boxes (5+1)
Spare parts
22073Level (bag of 10 pcs)

Spare parts

Image Reference Description Data sheet
White doors
PO36GP3F Opaque door 36 modules - 3 rows
Spare parts
22075 Hinge (bag of 10 pcs)
