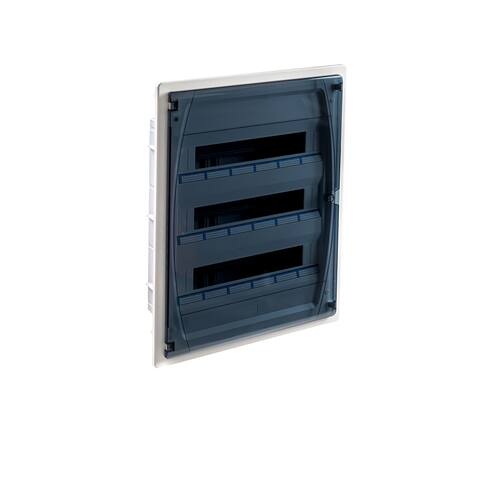

Reference: GPE54PT/RA

IP40 flush-fit brick wall distrib. box 3x18 (54) mod. Transp. door push-in PE+N

← Return to the list
Modular capacity Door type Dimensions (mm)
No. modules No. rows Height Width Depth
543x18Transparent57442497
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
GPE54PT/RA

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)650
Ball pressure test (ºC)70
Double insulationClass II

Accessories

Image Reference Description Data sheet
Various accessories
22150Joining element for flush-fit mounted boxes (hollow and conventional walls). Vertical and horizontal position
Locks
220151/4 turn mailbox type lock with key
Screw-in neutral and earth bars
22093Support + neutral and earth bar 2x(2+32 entries)
Push-in neutral and earth bars
22094Support + neutral and earth bar push-in 2x(5+35 entries)
Spare parts
220739.5x25 level

Spare parts

Image Reference Description Data sheet
Transparent doors
PT54GP Transparent door 54 modules
Push-in neutral and earth bars
22094 Support + neutral and earth bar push-in 2x(5+35 entries)
Spare parts
22075 Hinge
