IP40 Flush-fit with metal door distribution boxes

GME14PO/PH/RR

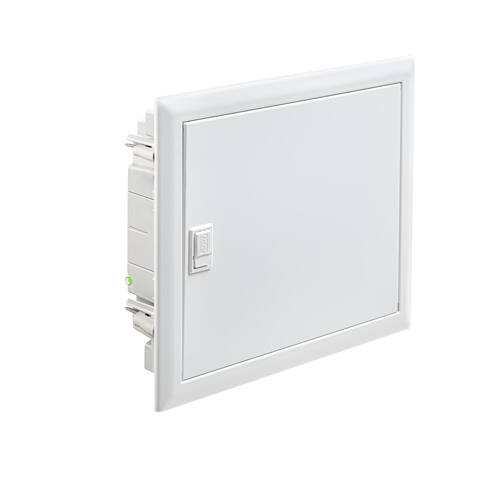

IP40 Flush-fit hollow walls distribution box 1x14 modules metal door PE+N
Description
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
11IP40 Flush-fit with metal door distribution boxes

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)850
Double insulationClass II

Accessories

Image Reference Description Data sheet
Locks
22040Lock with key
Various accessories
22150Quarter-turn screws with and without arrow (bag of 4 units – 2 with arrow + 2 without)
22154M25 IP65 cable gland (1 unit)
Push-in neutral or earth bars. Flush-fit
22055Support and push-in busbar for 14 modules boxes 2x(1+7)
Spare parts
22073Level (bag of 10 pcs)

Spare parts

Image Reference Description Data sheet
Locks
22038 Standard lock
Screw-in neutral and earth bars. Flush-fit
22045 Support and busbar for 14 modules boxes 2x(2+12)
Metal doors
PO14GM Metal door 14 modules
Screw-in neutral and earth bars
22019 Support and busbar PE or neutral for CDN4G boxes (5+1)
Spare parts
22074 Hinge (bag of 10 pcs)
22104 Positioning connection element for RTR-M boxes in solid or hollow walls – horizontal or vertical position (2 units)
