Reference: GME28PO

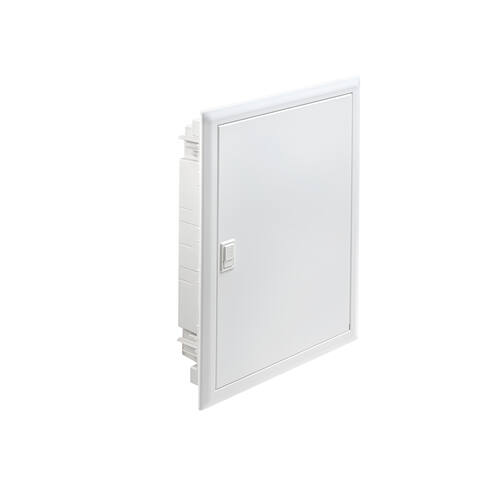

IP40 flush-fit brick wall distribution box 2x14 (28) modules. Metal door

← Return to the list
Modular capacity Door type Dimensions (mm)
No. modules No. rows Height Width Depth
282x14Opaque50238799
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
GME28PO

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)650
Double insulationClass II

Accessories

Image Reference Description Data sheet
Locks
220401/4 turn mailbox type lock with key
Various accessories
22150Joining element for flush-fit mounted boxes (hollow and conventional walls). Vertical and horizontal position
22154Joining element with cable entry for flush-fit mounted boxes (hollow and conventional walls). Horizontal position
Screw-in neutral and earth bars. Flush-fit

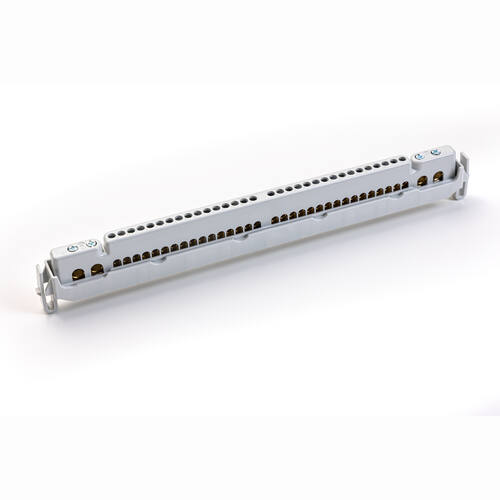

22046Support + neutral and earth bar 2x(2+16 entries)
Push-in neutral or earth bars. Flush-fit

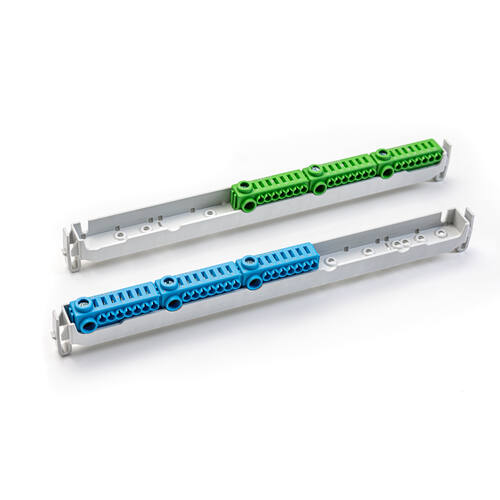

22056Support + neutral and earth bar push-in 3x(1+7 entries)
Screw-in neutral and earth bars
22019Support + neutral or earth bar (1+5 entries)
Spare parts
220739.5x25 level

Spare parts

Image Reference Description Data sheet
Locks
22038 Keyless pressure lock with IDE logo (standard)
Metal doors

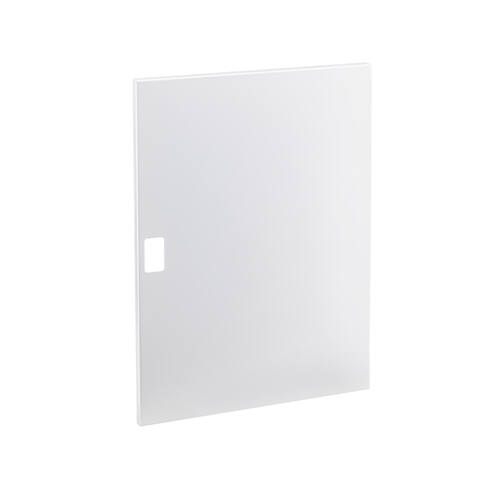

PO28GM 28 modules
Spare parts
22074 Hinge
