IP40 Flush-fit with metal door distribution boxes

GME28PO/PH

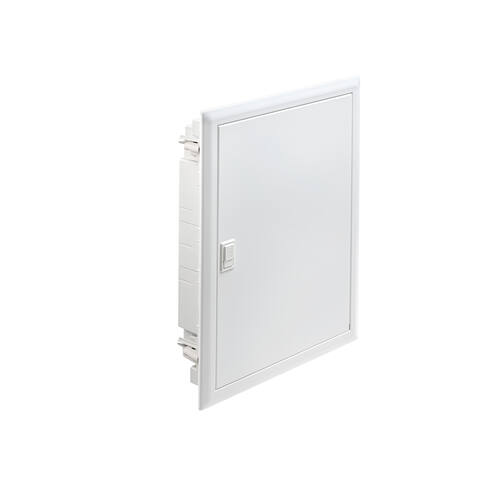

IP40 Flush-fit hollow walls distribution box 2x14(28) modules metal door
Description
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
11IP40 Flush-fit with metal door distribution boxes

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)850
Double insulationClass II

Accessories

Image Reference Description Data sheet
Locks
22040Lock with key
Various accessories
22150Quarter-turn screws with and without arrow (bag of 4 units – 2 with arrow + 2 without)
22154M25 IP65 cable gland (1 unit)
Screw-in neutral and earth bars. Flush-fit
22046Support and busbar for 28 modules boxes 2x(2+16)
Push-in neutral or earth bars. Flush-fit
22056Support and push-in busbar for 28 modules boxes 3x(1+7)
Screw-in neutral and earth bars
22019Support and busbar PE or neutral for CDN4G boxes (5+1)
Spare parts
22073Level (bag of 10 pcs)

Spare parts

Image Reference Description Data sheet
Locks
22038 Standard lock
Metal doors
PO28GM Metal door 28 modules
Spare parts
22074 Hinge (bag of 10 pcs)
22104 Positioning connection element for RTR-M boxes in solid or hollow walls – horizontal or vertical position (2 units)
