Reference: GME56PO/RR

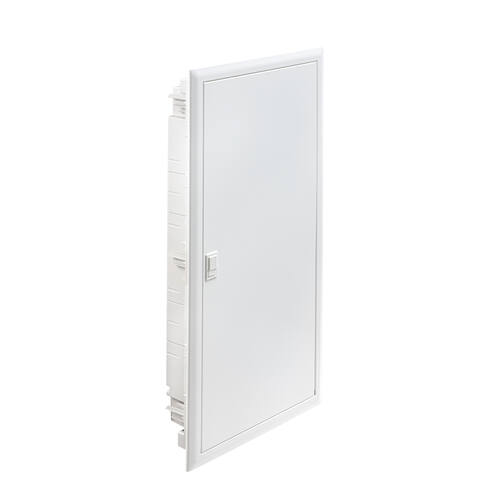

IP40 flush-fit brick wall distribution box 4x14 (56) modules. Metal door PE+N

← Return to the list
Modular capacity Door type Dimensions (mm)
No. modules No. rows Height Width Depth
564x14Opaque72538799
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
GME56PO/RR

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)650
Double insulationClass II

Accessories

Image Reference Description Data sheet
Locks
220401/4 turn mailbox type lock with key
Various accessories
22150Joining element for flush-fit mounted boxes (hollow and conventional walls). Vertical and horizontal position
22154Joining element with cable entry for flush-fit mounted boxes (hollow and conventional walls). Horizontal position
Push-in neutral or earth bars. Flush-fit
22058Support + neutral and earth bar push-in 5x(1+7 entries)
Spare parts
220739.5x25 level

Spare parts

Image Reference Description Data sheet
Locks
22038 Keyless pressure lock with IDE logo (standard)
Screw-in neutral and earth bars. Flush-fit
22047 Support + neutral and earth bar 2x(4+32 entries)
Metal doors
PO56GM 56 modules
Screw-in neutral and earth bars
22019 Support + neutral or earth bar (1+5 entries)
Spare parts
22074 Hinge
