Reference: GME70PO/PH

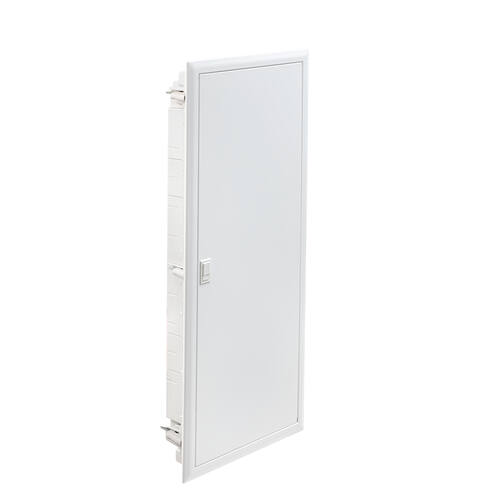

IP40 flush-fit hollow wall distribution box 5x14 (70) modules. Metal door

← Return to the list
Modular capacity Door type Dimensions (mm)
No. modules No. rows Height Width Depth
705x14Opaque87738797
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
GME70PO/PH

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)850
Double insulationClass II

Accessories

Image Reference Description Data sheet
Locks
220401/4 turn mailbox type lock with key
Various accessories
22150Joining element for flush-fit mounted boxes (hollow and conventional walls). Vertical and horizontal position
22154Joining element with cable entry for flush-fit mounted boxes (hollow and conventional walls). Horizontal position
Screw-in neutral and earth bars. Flush-fit
22048Support + neutral and earth bar 4x(2+24 entries)
Push-in neutral or earth bars. Flush-fit
22059Support + neutral and earth bar push-in 4x(1+7 entries)
Screw-in neutral and earth bars
22019Support + neutral or earth bar (1+5 entries)
Spare parts
220739.5x25 level

Spare parts

Image Reference Description Data sheet
Locks
22038 Keyless pressure lock with IDE logo (standard)
Metal doors
PO70GM 70 modules
Spare parts
22074 Hinge
22104 Hollow wall fixing claws
