Reference: GMEM42PO/PH

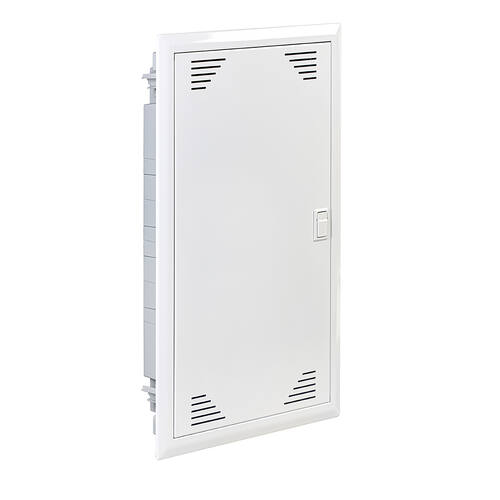

IP40 multimedia box flush-fit hollow wall w/ multimedia pl 300x295 and 14 mod

← Return to the list
Plate type Modular capacity Dimensions (mm) Door type N&E bars
No. modules No. rows Height Width Depth
Micro-perforated141x1462738797OpaqueNo
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
GMEM42PO/PH

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)850
Double insulationClass II

Accessories

Image Reference Description Data sheet
Locks
220401/4 turn mailbox type lock with key
Various accessories
22150Joining element for flush-fit mounted boxes (hollow and conventional walls). Vertical and horizontal position
22154Joining element with cable entry for flush-fit mounted boxes (hollow and conventional walls). Horizontal position
Screw-in neutral and earth bars. Flush-fit
22047Support + neutral and earth bar 2x(4+32 entries)
Push-in neutral or earth bars. Flush-fit
22057Support + neutral and earth bar push-in 4x(1+7 entries)
Multimedia accessories
22155Double Schuko type base
22156Bracket modem
22157RJ mounting bracket
Screw-in neutral and earth bars
22019Support + neutral or earth bar (1+5 entries)
Spare parts
220739.5x25 level

Spare parts

Image Reference Description Data sheet
Locks
22038 Keyless pressure lock with IDE logo (standard)
Spare parts
22074 Hinge
22104 Hollow wall fixing claws
