Reference: GMEM70PO28/PH/RR

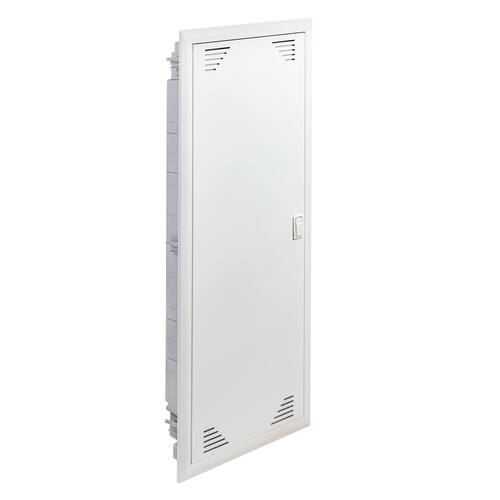

IP40 multimedia box flush-fit hollow wall w/ multimedia pl 550x295 + 28 mod PE+N

← Return to the list
Plate type Modular capacity Dimensions (mm) Door type N&E bars
No. modules No. rows Height Width Depth
Micro-perforated282x1450238799OpaqueYes
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
GMEM70PO28/PH/RR

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)850
Double insulationClass II

Accessories

Image Reference Description Data sheet
Locks

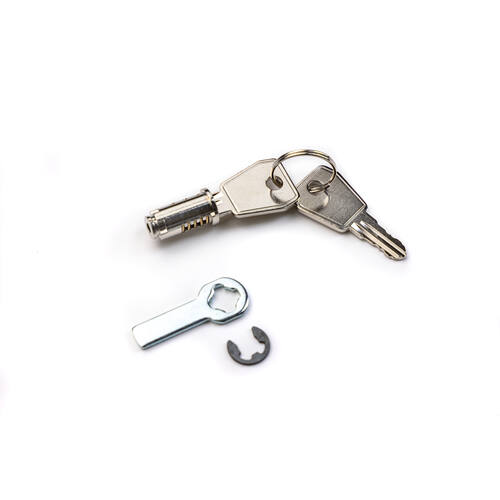

220401/4 turn mailbox type lock with key
Various accessories

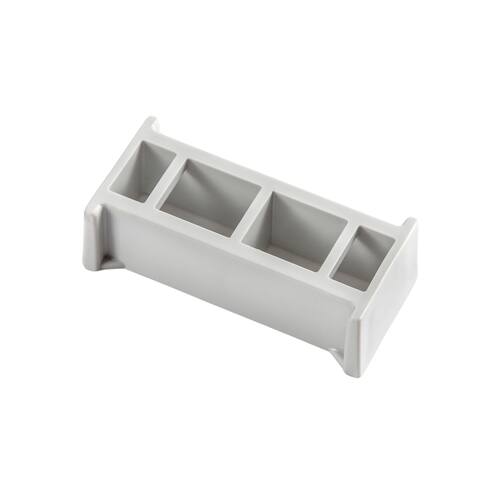

22150Joining element for flush-fit mounted boxes (hollow and conventional walls). Vertical and horizontal position

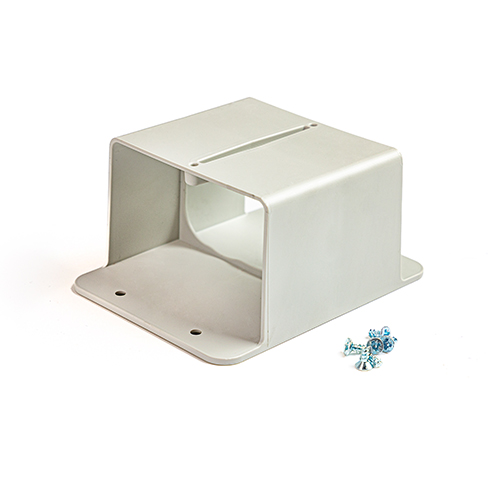

22154Joining element with cable entry for flush-fit mounted boxes (hollow and conventional walls). Horizontal position
Push-in neutral or earth bars. Flush-fit

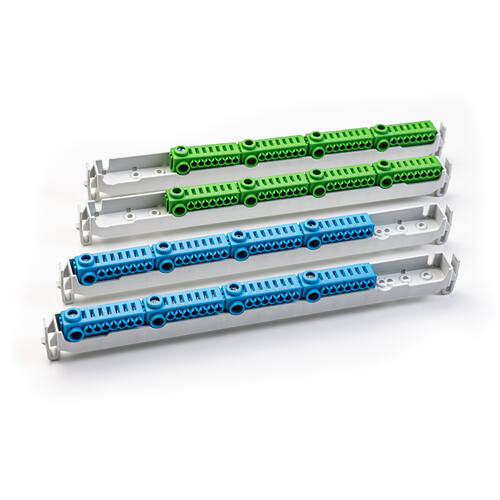

22059Support + neutral and earth bar push-in 4x(1+7 entries)
Multimedia accessories

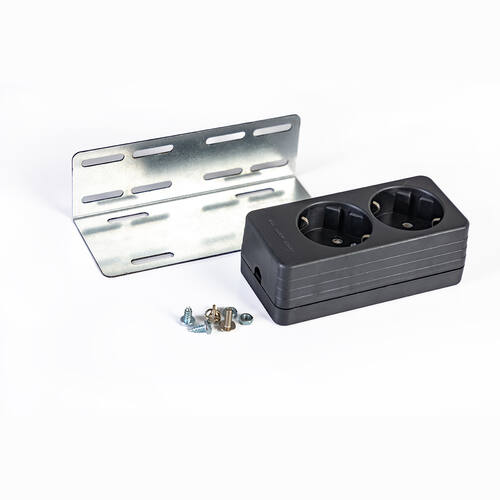

22155Double Schuko type base

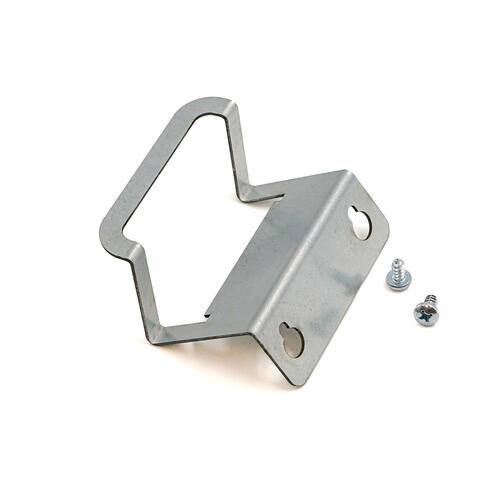

22156Bracket modem

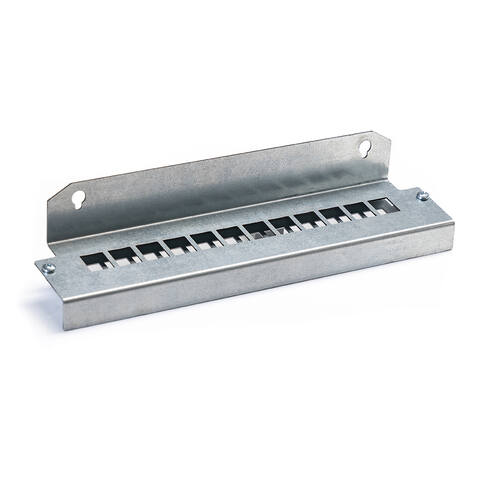

22157RJ mounting bracket
Spare parts

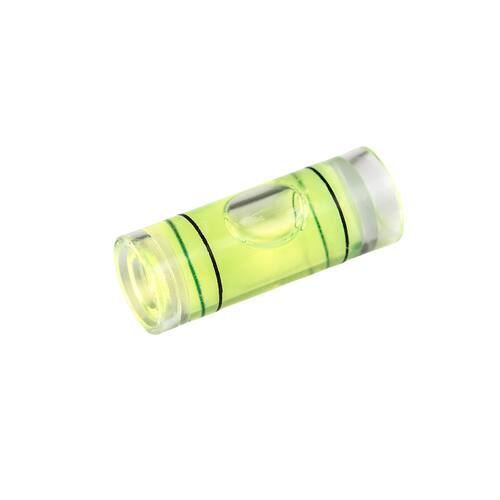

220739.5x25 level

Spare parts

Image Reference Description Data sheet
Locks

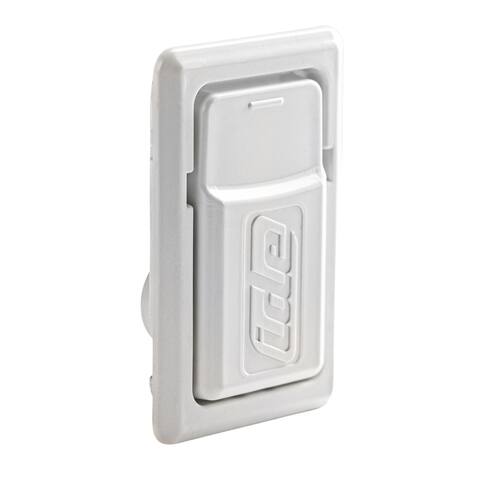

22038 Keyless pressure lock with IDE logo (standard)
Screw-in neutral and earth bars. Flush-fit

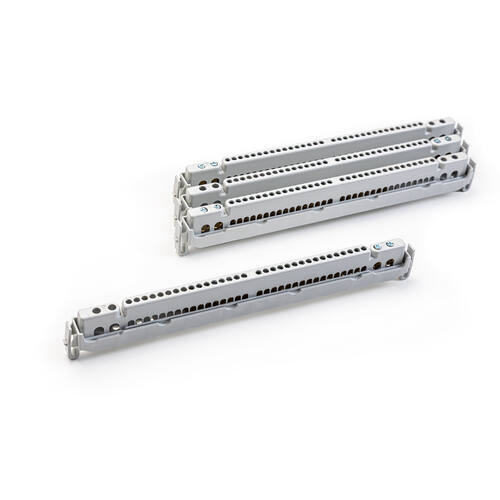

22048 Support + neutral and earth bar 4x(2+24 entries)
Screw-in neutral and earth bars

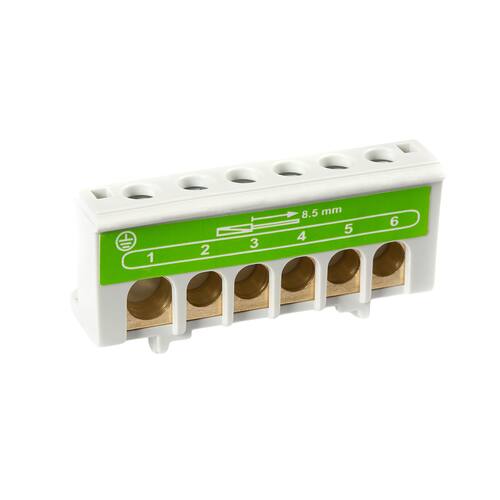

22019 Support + neutral or earth bar (1+5 entries)
Spare parts

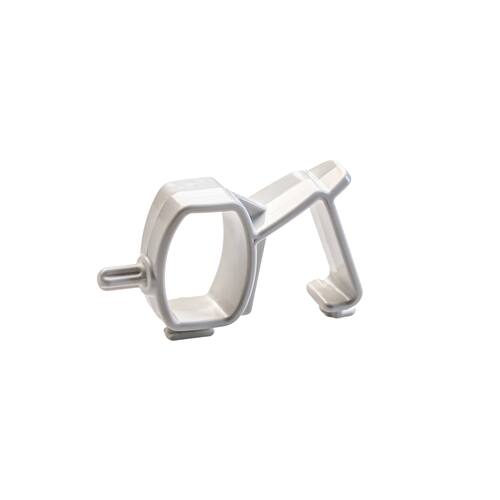

22074 Hinge

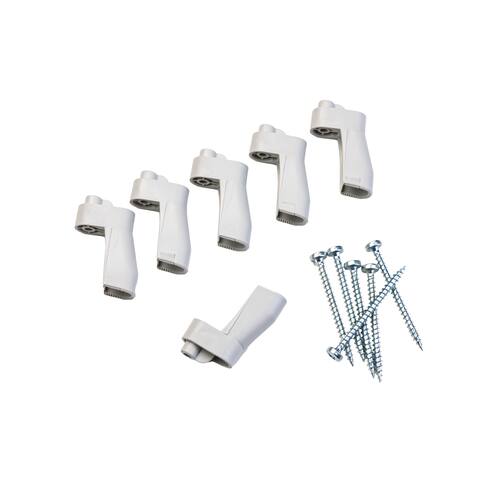

22104 Hollow wall fixing claws
