Reference: GMS70PO/RR

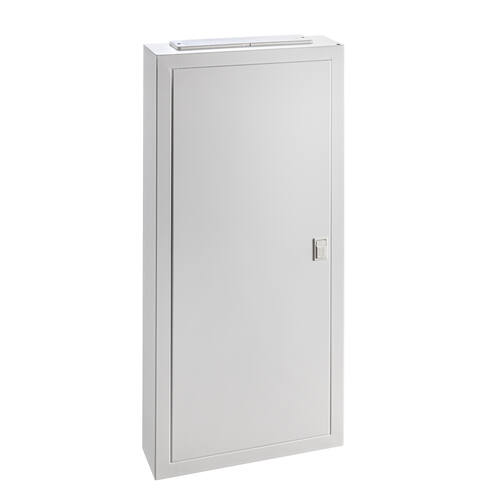

IP40 surface distrib. box 5x14 (70) mod. Metal base and door PE+N. Plastic cover

← Return to the list
Modular capacity Door type Dimensions (mm)
No. modules No. rows Height Width Depth
705x14Opaque885390122
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
GMS70PO/RR

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)650
Double insulationClass I

Accessories

Image Reference Description Data sheet
Locks
220401/4 turn mailbox type lock with key
Push-in neutral or earth bars. Surface
22099Support + neutral and earth bar push-in 4x(1+7 entries)

Spare parts

Image Reference Description Data sheet
Locks
22038 Keyless pressure lock with IDE logo (standard)
Screw-in neutral and earth bars. Surface
22088 Support + neutral and earth bar 4x(2+24 entries)
Metal doors
PO70GM 70 modules
Screw-in neutral and earth bars
22019 Support + neutral or earth bar (1+5 entries)
Spare parts
22074 Hinge
