Reference: GPS18PT

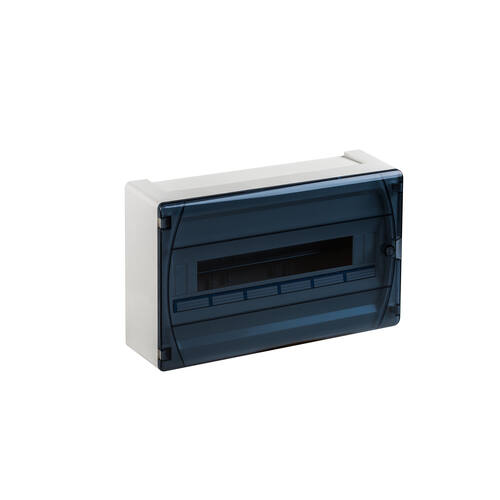

IP40 surface distribution box 1x18 modules. Transparent door

← Return to the list
Modular capacity Door type Dimensions (mm)
No. modules No. rows Height Width Depth
181x18Transparent254393118
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
GPS18PT

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)650
Ball pressure test (ºC)70
Double insulationClass I

Accessories

Image Reference Description Data sheet
Locks
220151/4 turn mailbox type lock with key
Screw-in neutral and earth bars
22032Support + neutral and earth bar 2x(2+16 entries)
Push-in neutral and earth bars
22042Support + neutral and earth bar push-in 4x(1+7entries)
Screw-in neutral and earth bars
22019Support + neutral or earth bar (1+5 entries)
Spare parts
220739.5x25 level

Spare parts

Image Reference Description Data sheet
Transparent doors
PT18GP Transparent door 18 modules
Spare parts
22075 Hinge
