IP40 Surface plastic distribution boxes

GPS36PT3F/RA

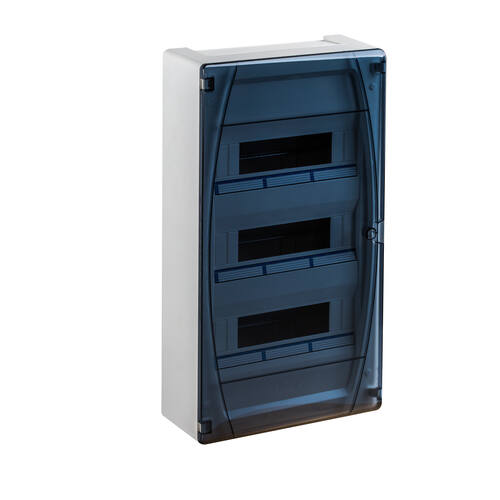

IP40 Surface distribution box 3x12 (36) modules transparent door push-in PE+N
Description
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
11IP40 Surface plastic distribution boxes

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK08
Glow wire resistance (ºC)650
Ball pressure test (ºC)70
Double insulationClass I

Accessories

Image Reference Description Data sheet
Locks
22015Lock with key
Screw-in neutral and earth bars
22034Support and busbar for 36 modules boxes (3 rows) 2x(2+24)
22019Support and busbar PE or neutral for CDN4G boxes (5+1)
Spare parts
22073Level (bag of 10 pcs)

Spare parts

Image Reference Description Data sheet
Transparent doors
PT36GP3F Transparent door 36 modules - 3 rows
Push-in neutral and earth bars
22084 Support and automatic busbar for 36 modules boxes 2x(4+28)
Spare parts
22075 Hinge (bag of 10 pcs)
