Reference: CDP36PT3F/RR

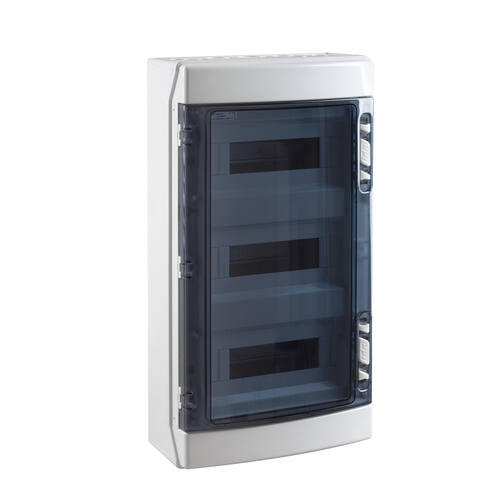

IP65 PC distribution box 3x12 (36) modules. Transparent door N&E

← Return to the list
Modular capacity Dimensions (mm) Window
No. modules No. rows Height Width Depth
363x12586310148Transparent
Plan pdf pdf
Plan dxf dxf
Data sheet pdf
CDP36PT3F/RR

Technical data

Technical data
Protection degreeIP65
Resistance to impactIK08
Glow wire resistance (ºC)850
Ball pressure test (ºC)70
Temperatura máxima materiales (ºC)+80
Double insulationClass II

Accessories

Image Reference Description Data sheet
Bushing
22273M25 bushing (IP67)
22274M40 bushing (IP67)
Cable gland
22580M25 cable gland (IP68-IP69)
22582M32 cable gland (IP68-IP69)
22584M40 cable gland (IP68-IP69)
Cable gland nut
22581M25 cable gland nut
22583M32 cable gland nut
22585M40 cable gland nut
Cap with membrane
22589M20 membrane cap
22591M32 membrane cap
22690M25 membrane cap
Lock
22010Keyless pressure lock with IDE logo (standard)

Spare parts

Image Reference Description Data sheet
Transparent window
PT363FCDN 36 modules (3 rows)
Module covers
22590 Module cover in grey RAL 7035 (6 modules)
Screw-in neutral and earth bars
22004 Support + neutral and earth bar 2x(2+24 entries)
Lock
22069 8-mm triangular lock + key (2 pcs.)
92150 Security lock + key
Spare parts
22012 Window hinge
22068 Internal hinge for frame base
22200 Cover-base locking screw
22611 4x13 screws
22650 Hermetic caps
