Reference: CDP4PT

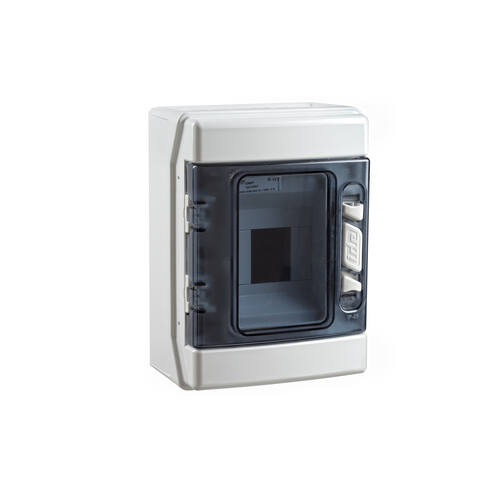

IP65 PC distribution box 1x4 modules. Transparent door

← Return to the list
Modular capacity Dimensions (mm) Window
No. modules No. rows Height Width Depth
41x4231166113Transparent
Plan pdf pdf
Plan dxf dxf
Data sheet pdf
CDP4PT

Technical data

Technical data
Protection degreeIP65
Resistance to impactIK08
Glow wire resistance (ºC)850
Ball pressure test (ºC)70
Temperatura máxima materiales (ºC)+80
Double insulationClass II

Accessories

Image Reference Description Data sheet
Bushing
22273M25 bushing (IP67)
22274M40 bushing (IP67)
Cable gland
22580M25 cable gland (IP68-IP69)
22582M32 cable gland (IP68-IP69)
22584M40 cable gland (IP68-IP69)
Cable gland nut
22581M25 cable gland nut
22583M32 cable gland nut
22585M40 cable gland nut
Cap with membrane
22589M20 membrane cap
22591M32 membrane cap
22690M25 membrane cap
Screw-in neutral and earth bars

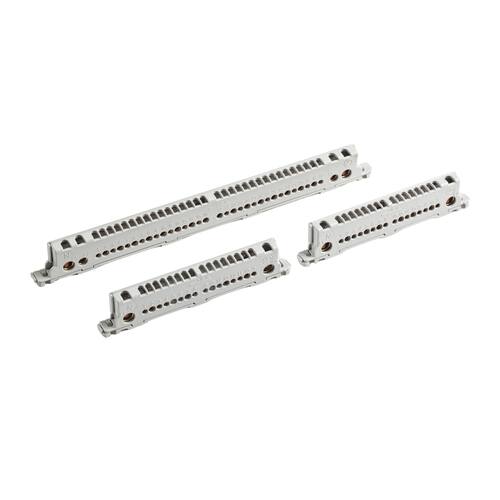

22000Support + neutral and earth bar 2x(1+4 entries)
Lock
22010Keyless pressure lock with IDE logo (standard)

Spare parts

Image Reference Description Data sheet

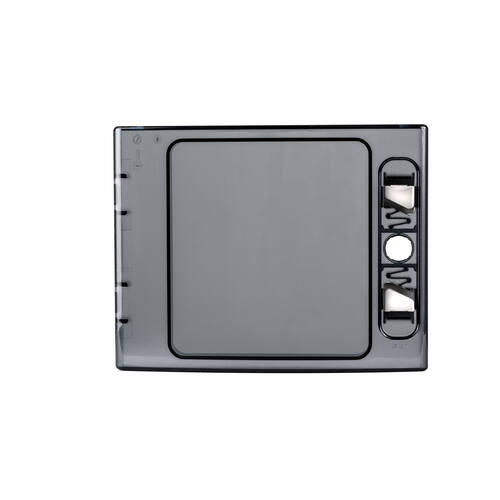

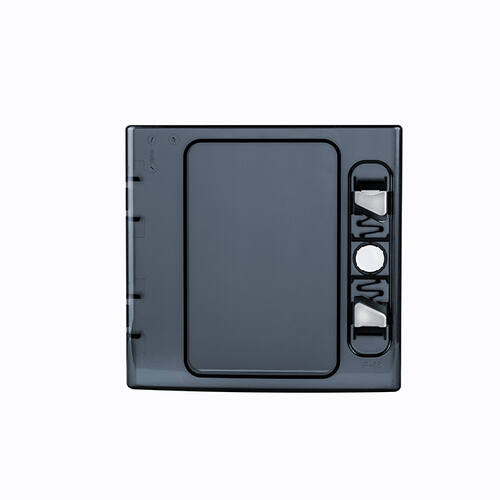

Transparent window
PT04CDN 4 modules
Module covers
22590 Module cover in grey RAL 7035 (6 modules)
Lock
22069 8-mm triangular lock + key (2 pcs.)
92150 Security lock + key
Spare parts
22012 Window hinge
22068 Internal hinge for frame base
22200 Cover-base locking screw
22611 4x13 screws
22650 Hermetic caps
