40ENL192-240PT/300

Modular capacity	Dimensions (mm)			Usable space (mm)	Door type
Modular capacity	Height	Width	Depth	Height	Door type

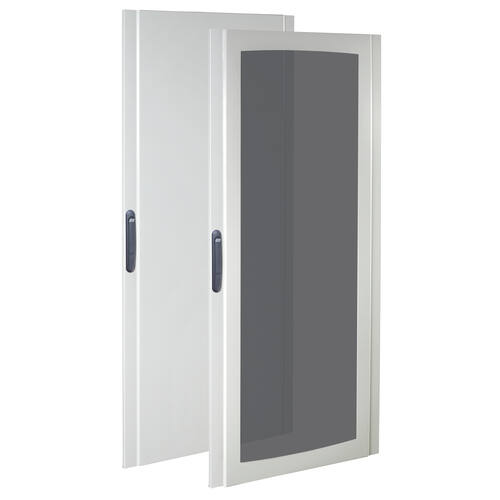

192-240	1810	730	300	1600	Single transparent

Technical data

Technical data
Protection degree	IP40
Resistance to impact	IK09
Certificates and regulations
Directive	2014/35/EU
Norms	UNE-EN 62208,UNE-EN 61439-1

Accessories

Image	Reference	Description
Main switch kit for auxiliary module
	48705/300	Molded case switch kit
Protective covers for busbar
	48266	Busbar protection cover
	48267	Busbar protection cover
	48370	Busbar protection cover
	48371	Busbar protection cover
	48372	Busbar protection cover
Total metal mounting plate
	PLM1600	Flat metal mounting plate 1650 mm
	PLM1900	Flat metal mounting plate 1950 mm
Lifting and mounting elements
	48244	Lifting and mounting pack
	48245	Joining, lifting and mounting pack
Modular fixed metal cover
	TMM150F	Fixed modular cover
	TMM200F	Fixed modular cover
	TMM300F	Fixed modular cover
	TMM400F	Fixed modular cover
Plain fixed metal cover
	TCM100F	Fixed blind covers
	TCM150F	Fixed blind covers
	TCM200F	Fixed blind covers
	TCM300F	Fixed blind covers
	TCM400F	Fixed blind covers
	TCM50F	Fixed blind covers
Moulded-case circuit breaker cover (MCCB)
	TMCB200	200 mm cover for MCCB
	TMCB250	250 mm cover for MCCB
	TMCB300	300 mm cover for MCCB
	TMCB400	400 mm cover for MCCB
Molded-case plate (MCCB)
	PMCB200	Adjustable plate for molded box 200 mm (MCCB)
	PMCB250	Adjustable plate for molded box 250 mm (MCCB)
	PMCB300	Adjustable plate for molded box 300 mm (MCCB)
	PMCB350	Adjustable plate for molded box 350 mm (MCCB)
Support for moulded box plate (MCCB)
	48345/300	Mounting plate brackets for MCCB
Vertical trunking support
	48243	Vertical trunking support
Partial metal mounting plate
	PLM200	Partial smooth metal plate 200 mm
	PLM300	Partial smooth metal plate 300 mm
	PLM400	Partial smooth metal plate 400 mm
Rail and plate mounting elements
	48340/300	Rail fixing element for surface cabinets
Horizontal trunking support
	49368	Horizontal duct support
Hinges and retainers
	48482	Lock retainer
	48626	Standard hinge 120°
Inserts for lock with handle
	48463	8-mm triangular insert lock + key
	48464	Keyless pressure insert lock
	48465	Security insert lock + code 333 key
	48541	6.5-mm triangular insert lock + key
	48585	Security insert lock + code 405 key
	48588	Security insert lock + code 1242E key
Lift handle
	48522	Interlock kit
	48523	Quarter-turn lock + handle RAL 7016 (without rods)
Rods for inner locks
	48560	Single door rod 1650/1800 mm height
