Reference: 40SUP120-168PT

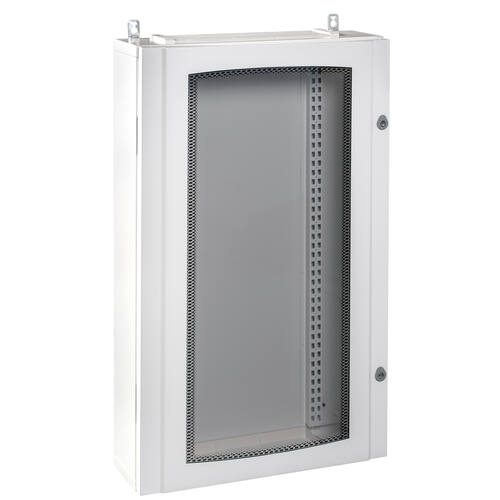

IP40 Compact surface distribution cabinet. PT 120-168 mod. with removable frame

← Return to the list
Modular capacity Dimensions (mm) Usable space (mm) Door type
Height Width Depth Height
120-16811106702121050Single transparent
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
40SUP120-168PT

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK09
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Modular cover kit. PLASTIC (Surface)

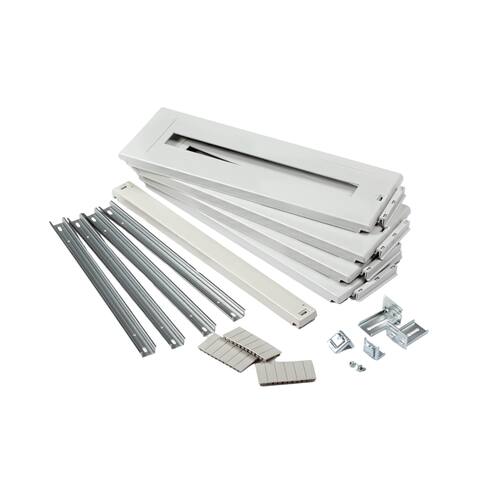

S120P200Surface plastic cover kits + 5 DIN rails

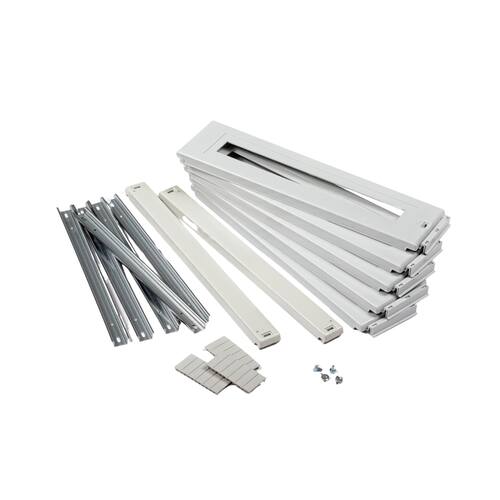

S168P150Surface plastic cover kits + 7 DIN rails
Doors for IP40 cabinets
PO40SUP120-168Opaque door for surface-mounted cabinet IP40
PT40SUP120-168Transparent door for surface-mounted cabinet IP40
Modular cover kit. METALLIC (Surface)

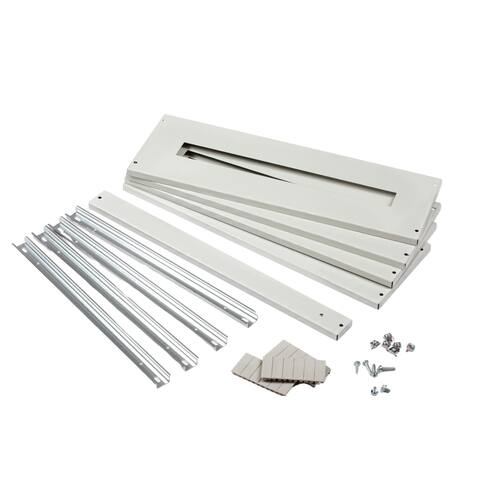

S120M200Surface metal cover kits + 5 DIN rails

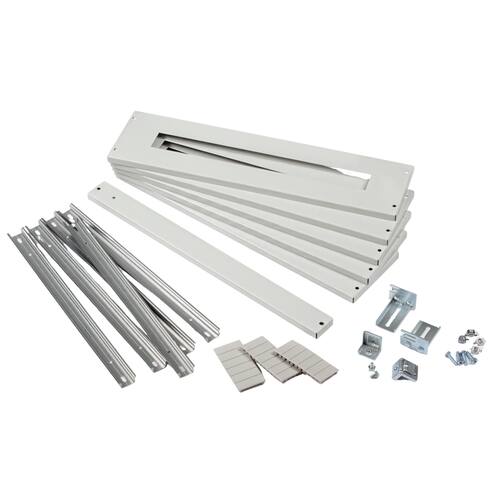

S168M150Surface metal cover kits + 7 DIN rails
Modular hinged plastic cover

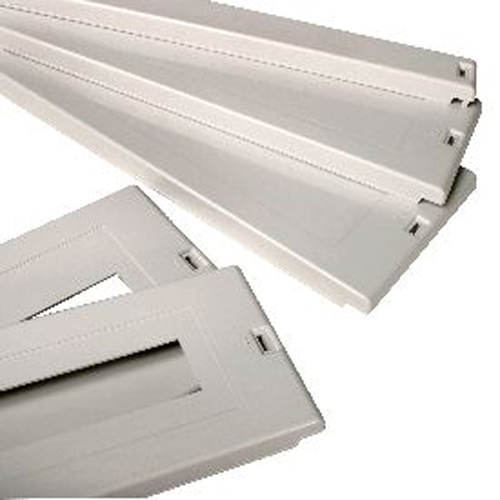

TM150Modular cover
TM200Modular cover
Plain hinged plastic cover
TC150Blind cover
TC200Blind cover
TC50Blind cover
Modular fixed metal cover
TMM150FFixed modular cover
TMM200FFixed modular cover
TMM300FFixed modular cover
TMM400FFixed modular cover
Plain fixed metal cover
TCM100FFixed blind covers
TCM150FFixed blind covers
TCM200FFixed blind covers
TCM300FFixed blind covers
TCM400FFixed blind covers
TCM50FFixed blind covers
Moulded-case circuit breaker cover (MCCB)
TMCB200200 mm cover for MCCB
TMCB250250 mm cover for MCCB
TMCB300300 mm cover for MCCB
TMCB400400 mm cover for MCCB
Molded-case plate (MCCB)
PMCB200Adjustable plate for molded box 200 mm (MCCB)
PMCB250Adjustable plate for molded box 250 mm (MCCB)
PMCB300Adjustable plate for molded box 300 mm (MCCB)
PMCB350Adjustable plate for molded box 350 mm (MCCB)
Support for moulded box plate (MCCB)

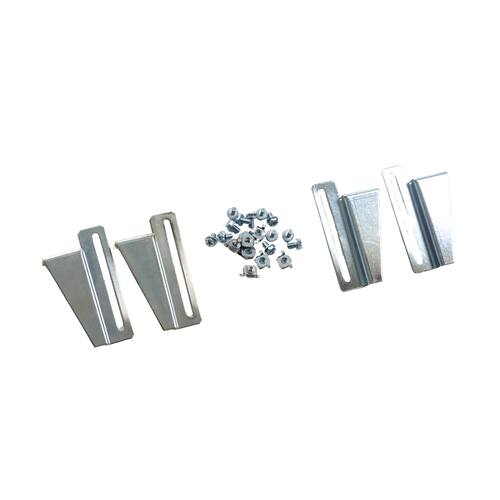

48345/250Mounting plate brackets for MCCB
Cover kit for busbar
48663Cover kit for busbar 120 modules
Moulded-case circuit breaker and busbar cover kit

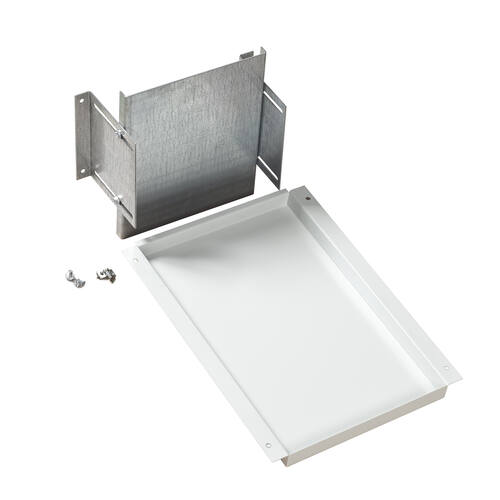

48703Moulded-case circuit breaker and busbar cover kit 120 modules
Vertical trunking support
48243Vertical trunking support
Wall-mounting support

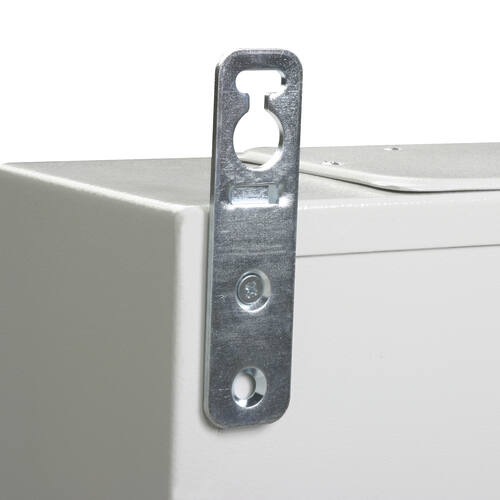

48427Wall-mounting support
Partial metal mounting plate

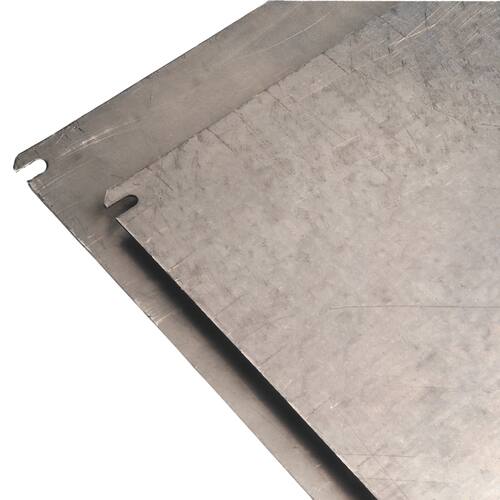

PLC450Partial smooth metal plate 450 mm
PLC600Partial smooth metal plate 600 mm
PLM200Partial smooth metal plate 200 mm
PLM300Partial smooth metal plate 300 mm
Total metal mounting plate

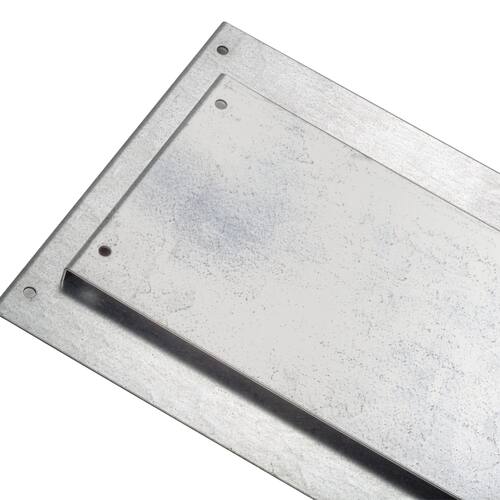

PLM1050Total smooth metal mounting plate 1050 mm
PLM1250Total smooth metal mounting plate 1250 mm
PLM850Total smooth metal mounting plate 850 mm
Rail and plate mounting elements

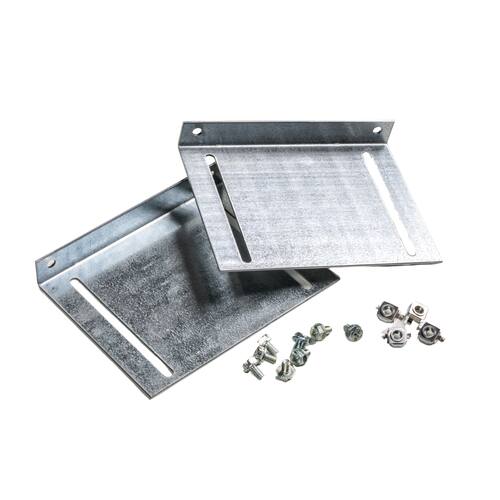

48340Adjustable mounting plate fixing elements for surface cabinets
Standard locks

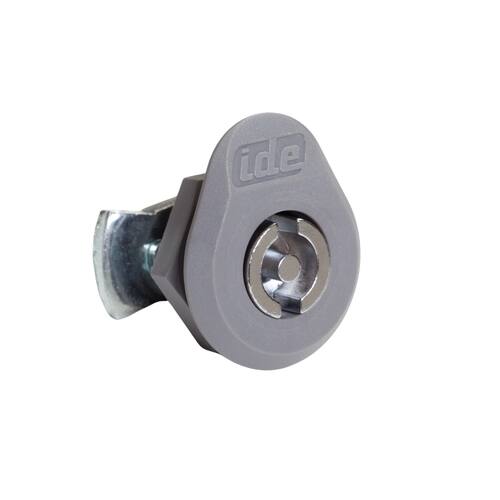

484455-mm double-bit lock (surface)
Locks with key

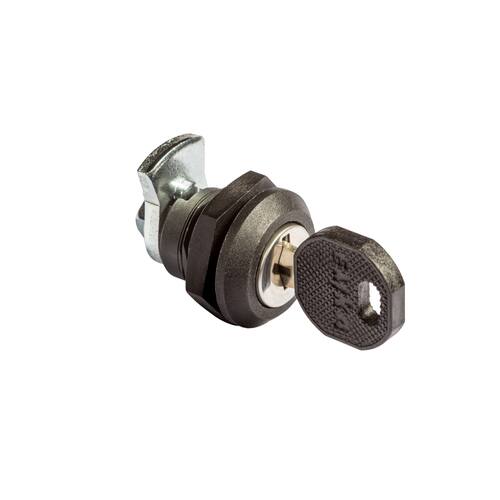

484471/4 turn mailbox-type lock + key code 333 (surface)
Wing nut locks

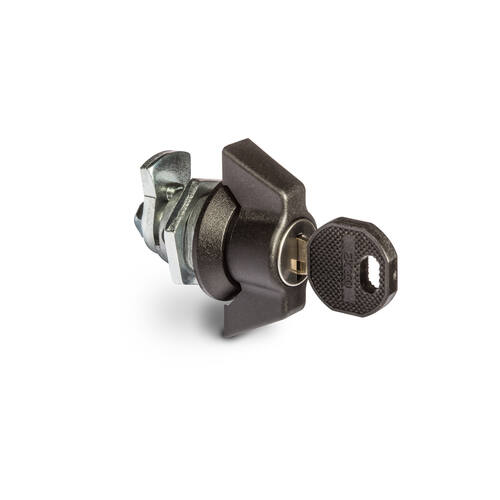

484581/4 turn lock + wing nut + key code 333 (surface)

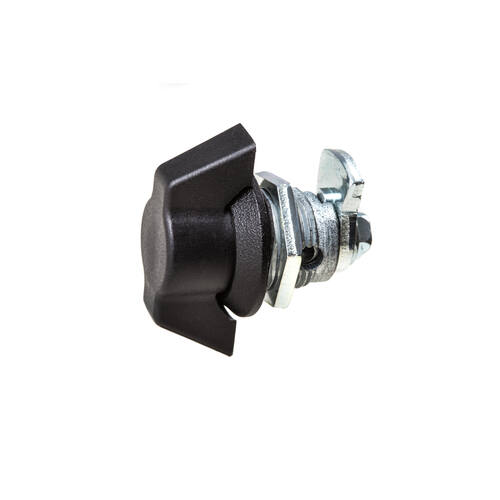

485421/4 turn lock + fixed wing nut (surface)
Horizontal trunking support

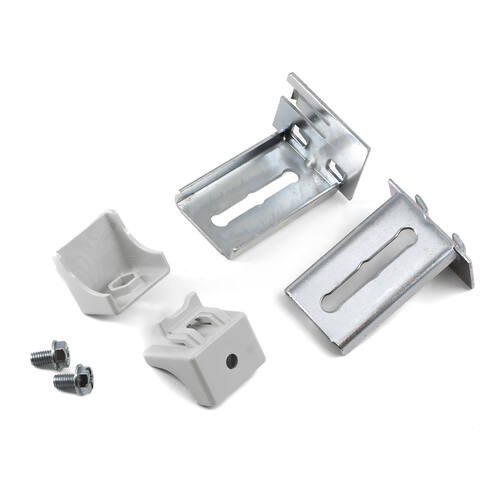

49368Horizontal duct support

Spare parts

Image Reference Description Data sheet
Keys
48449 5-mm double-bit key
Rail and plate mounting elements

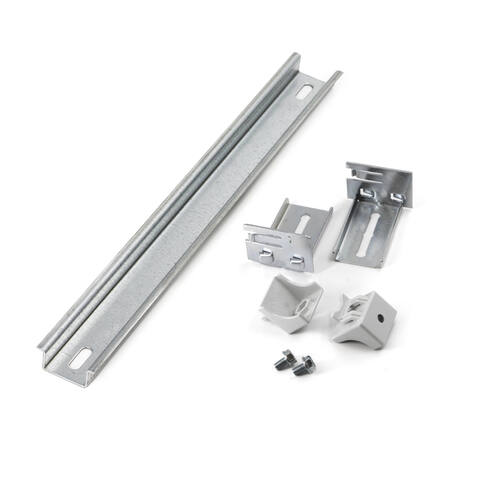

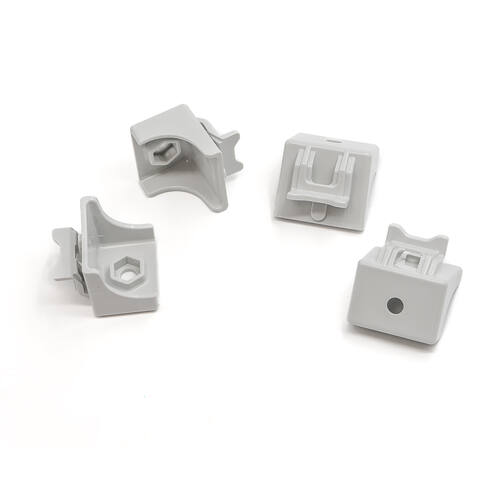

48012 Rail clamp

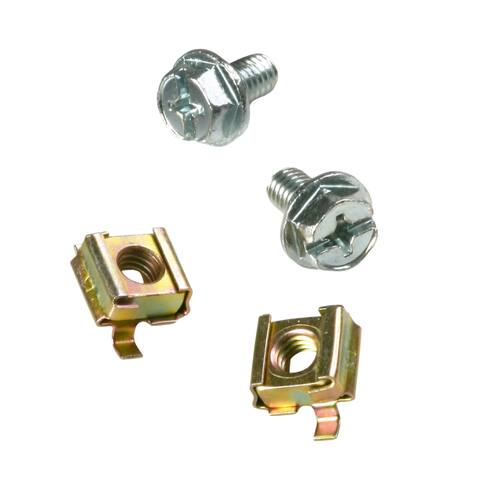

48022 Rail and plate fixing element for flush-fit cabinets
