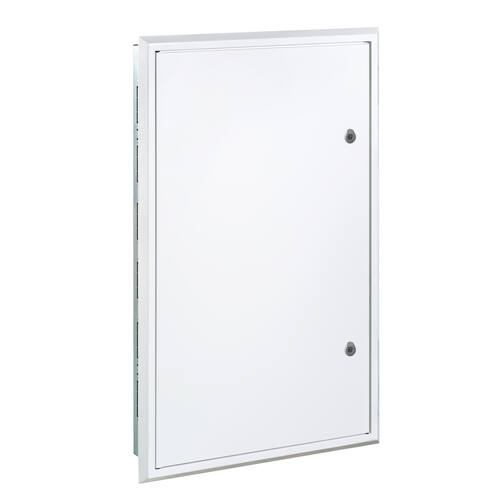

Reference: 40EMP120-168PO

IP40 Flush-fit distribution cabinet. Opaque door 120-168 mod.

← Return to the list
Modular capacity Dimensions (mm) Usable space (mm) Door type
Height Width Depth Height
120-16811977371201050Single opaque
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
40EMP120-168PO

Technical data

Technical data
Protection degreeIP40
Resistance to impactIK10
Certificates and regulations
Directive2014/35/EU
NormsIEC 62208,IEC 61439-1

Accessories

Image Reference Description Data sheet
Modular cover kit. PLASTIC (Flush-fit)
E120P200Flush-fit plastic cover kits + 5 DIN rails
E168P150Flush-fit plastic cover kits + 7 DIN rails
Modular cover kit. METALLIC (Flush-fit)
E120M200Flush-fit metal cover kits + 5 DIN rails
E168M150Flush-fit metal cover kits + 7 DIN rails
Modular hinged plastic cover
TM150Modular cover
TM200Modular cover
Plain hinged plastic cover
TC150Blind cover
TC200Blind cover
TC50Blind cover
Modular fixed metal cover
TMM150FFixed modular cover
TMM200FFixed modular cover
TMM300FFixed modular cover
TMM400FFixed modular cover
Plain fixed metal cover
TCM100FFixed blind covers
TCM150FFixed blind covers
TCM200FFixed blind covers
TCM300FFixed blind covers
TCM400FFixed blind covers
TCM50FFixed blind covers
Moulded-case circuit breaker cover (MCCB)
TMCB200200 mm cover for MCCB
TMCB250250 mm cover for MCCB
TMCB300300 mm cover for MCCB
TMCB400400 mm cover for MCCB
Molded-case plate (MCCB)
PMCB200Adjustable plate for molded box 200 mm (MCCB)
PMCB250Adjustable plate for molded box 250 mm (MCCB)
PMCB300Adjustable plate for molded box 300 mm (MCCB)
PMCB350Adjustable plate for molded box 350 mm (MCCB)
Support for moulded box plate (MCCB)
48345/250Mounting plate brackets for MCCB
DIN rail kit for flush-fit cabinets
48014DIN rail + mounting supports
Cover kit for busbar
48663Cover kit for busbar 120 modules
Moulded-case circuit breaker and busbar cover kit
48703Moulded-case circuit breaker and busbar cover kit 120 modules
Joining structure for flush-fit cabinets
48007Joining structure for flush-fit cabinets
Vertical trunking support
48243Vertical trunking support
Partial metal mounting plate
PLC450Partial smooth metal plate 450 mm
PLC600Partial smooth metal plate 600 mm
PLM200Partial smooth metal plate 200 mm
PLM300Partial smooth metal plate 300 mm
Total metal mounting plate
PLM1050Total smooth metal mounting plate 1050 mm
PLM1250Total smooth metal mounting plate 1250 mm
PLM850Total smooth metal mounting plate 850 mm
Rail and plate mounting elements
48340Adjustable mounting plate fixing elements for surface cabinets
Standard locks
484465-mm double-bit lock (flush-fit)
Locks with key
484481/4 turn mailbox-type lock + key code 333 (flush-fit)
Wing nut locks
484591/4 turn lock + wing nut + key code 333 (flush-fit)
Horizontal trunking support
49368Horizontal duct support

Spare parts

Image Reference Description Data sheet
Keys
48449 5-mm double-bit key
Rail and plate mounting elements
48012 Rail clamp
48022 Rail and plate fixing element for flush-fit cabinets
Doors (IP40 flush-fit cabinets)
PO40EMP120-168 Opaque door for flush-mounted cabinet
PT40EMP120-168 Transparent door for flush-mounted cabinet
