IP65 Compact steel surface distribution cabinets. (48-192 modules)

65SUP144-192PO

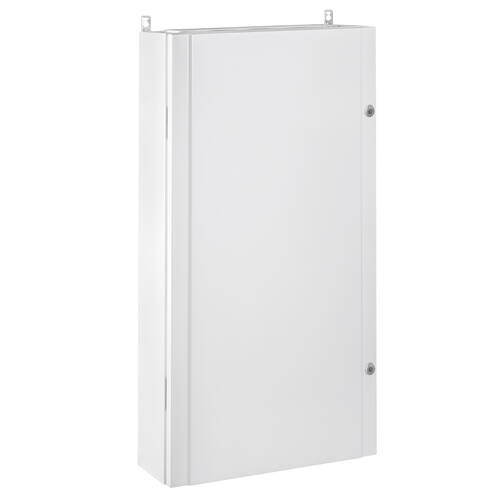

IP65 Compact surface distribution cabinet white door (144-192 mod.)
Description
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
11IP65 Compact steel surface distribution cabinets. (48-192 modules)

Technical data

Technical data
Protection degreeIP65
Resistance to impactIK10
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Modular hinged plastic cover
TM150Modular cover
TM200Modular cover
Plain hinged plastic cover
TC150Blind cover
TC200Blind cover
TC50Blind cover
Modular fixed metal cover
TMM150FFixed modular cover
TMM200FFixed modular cover
TMM300FFixed modular cover
TMM400FFixed modular cover
Plain fixed metal cover
TCM100F
TCM150FFixed blind covers
TCM200FFixed blind covers
TCM300FFixed blind covers
TCM400FFixed blind covers
TCM50FFixed blind covers
Moulded-case circuit breaker cover (MCCB)
TMCB200200 mm cover for MCCB
TMCB250250 mm cover for MCCB
TMCB300300 mm cover for MCCB
TMCB400400 mm cover for MCCB
Molded-case plate (MCCB)
PMCB200Adjustable plate for molded box 200 mm (MCCB)
PMCB250Adjustable plate for molded box 250 mm (MCCB)
PMCB300Adjustable plate for molded box 300 mm (MCCB)
PMCB350Adjustable plate for molded box 350 mm (MCCB)
Support for moulded box plate (MCCB)
48345/250Support for molded case circuit breaker (MCCB) plate
DIN rail kit for surface cabinets
48013DIN rail 24 modules + mounting supports for surface-mounted cabinets
Cover kit for busbar
48664
Moulded-case circuit breaker and busbar cover kit
48704
Vertical trunking support
48243Vertical duct support
Wall-mounting support
48427Trilobular screw with countersunk head; with Torx M6x19
Partial metal mounting plate
PLC450
PLC600
PLM200
PLM300
Total metal mounting plate
PLM1050
PLM1250
PLM850
Rail and plate mounting elements
48340Adjustable plate fastening elements for surface cabinets
Standard locks
48445Flat earth terminal 200 mm
Locks with key
48447Double latch closure 5 mm (surface)
Wing nut locks
48458Quarter-turn mailbox type closure with key code 333
48542Triangle insert lock + triangle key 6.5
Horizontal trunking support
49368Horizontal duct support

Spare parts

Image Reference Description Data sheet
Rail and plate mounting elements
48012
48022 Rail and plate fixing for flush-mounted cabinets
48444 Swivel bushes (flush-mounted doors)
Doors (IP65 surface cabinets)
PO65SUP144-192 Opaque door for surface-mounted cabinet IP65
PT65SUP144-192 Transparent door for surface-mounted cabinet IP65
Keys
48449 Quarter-turn mailbox type closure with key code 333 (surface)
