19''-Rack floor-standing cabinets

ENLBP20010080PT/SP

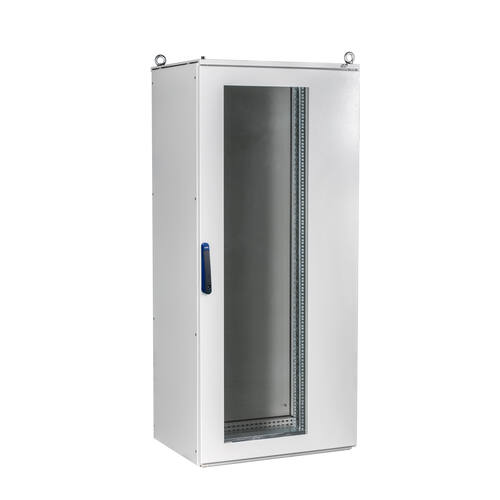

IP55 Combinable cabinet with swing frame 40U. ttransp. Door without plate
Assembly units Height (mm) Width (mm) Depth (mm) Door type With mounting plate
20001000800Transparente únicaNo
Data sheet pdf
11

Technical data

Technical data
Protection degreeIP55
NEMA degree of protection1, 12
Resistance to impactIK09
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Lifting eyebolts
48115Lifting eyes
Insulation joint
48480Light gray corner finishing gasket (6 m)
Total plain mounting plates
PL200100
Parcial plain mounting plates
PLP20100
PLP30100
PLP40100
PLP60100
PACK 4: Side panels
PLA20080Pack 4: Side panels
Linking plates
PLC2000
PACK 5: Opaque doors
PO200100Pack 5: Single opaque door
Plate reinforcement kit
KRPL100Reinforcement kit for plates width 1000 mm
Slide way
48500Quarter-turn mailbox type closure with key code 1242E 1P
GD1000Guide set 400
Accessory packs for plates
48471Allen screw M8x16
48472Allen screw M12x20
48473Support for full plate mounting (Pack 4 pcs)
48474Support for partial plate mounting (Pack 4 pcs)
48624Partial separation plate mounting bracket (Pack of 2 pcs.)
Connection packs for combinable cabinets
48111Inner junction for linkable cabinets (pack 6 units)
48112Corner junction for linkable cabinets (pack 4 units)
48116Mixed linking kit; 4 units inner junction + 4 units corner junction
Connection and lifting packs
48114Linking and lifting brackets for linkable cabinets (2 units)
Wall-mounting pack
48113Wall fixing (pack 2 units)
Insulation joint
48478Lifting eyebolts M12 (Pack 2 pcs)
Insulation joint for horizontal profiles
48479Anti-rotation screw M6x10. Hex PH+R hardness 4.8
Insulation joint pack
48636Insulating gasket set for ENL cabinets
Insulation brush
48481Insulation gasket for ENL cabinet joint (horizontal profiles) (6 m)
Modular frame (without partition)
BTM200100
Modular frame (with partition door)
BTM200100/P400
Modular frame (with partition column)
BTM200100/E200
Covers for modular frame. FIXED MODULAR
TMF15100
TMF20100
TMF30100
TMF40100
Covers for modular frame. FIXED PLAIN
TCF05100
TCF10100
TCF15100
TCF20100
TCF30100
TCF40100
TCF60100
Covers for modular frame. MODULAR HINGED
TMA15100
TMA20100
TMA30100
TMA40100
Attachment kit + DIN rail (for modular covers)
48158Fixing kit + DIN rail 1000 mm
Horizontal trunking support
49368Horizontal duct support
Busbar chamber
CE3010080Busbar chamber top-bottom
CE4010080Busbar chamber top-bottom
Panels for busbar chamber. SIDE PANELS
PLCE3080Side panel (Pack 2 pcs.)
PLCE4080Side panel (Pack 2 pcs.)
Ventilated plinth (corner pieces and front covers)
ZCLV20100
Plinth (corner pieces and front covers)
ZCL10100
ZCL20100
100+100 plinth (corner pieces and front covers)
ZCL2T10100
Side covers for plinth
TLZCL10100
TLZCL20100
Mounting profiles. FOR MODULAR FRAME
PMB800Profile for modular frame
Mounting profiles. REINFORCED OUTSIDE ASSEMBLY
PMER1000Reinforced external mounting profile
Mounting profiles. OUTSIDE SIMPLE ASSEMBLY
PMES800Simple external mounting profile
Keys
48460Quarter-turn butterfly closure with key code 333 (surface)
Mounting profiles. INTERIOR PARTITION
PPI800Interior partition profile
Swing tray
48776Swing-out tray for PC
Side canopy for attachable canopy (galvanised steel)
TEJL80
Central canopy connection for attachable canopy (galvanised steel)
TEJC80
Interlocking and actuation systems for doors
48515Iberdrola Levante cylinder with key
48634Decorative lock
Inserts for lock with handle
48463Limit switch
48464Triangle insert closure + triangle key 8
48465Pressure insert closure without key
48541Countersunk Torx screw M6x23
48585Zamak rod control for BIG INOX cabinet
48588Security insert lock with key code 405
Door retainer
48466Security insert closure with key code 333
Door switch with lever
48462Zamak double latch key 5 mm
Door switch with push button
48620Door switch with screw fixation Argenta Plus
Transport casters
48290Transport wheels
Levelling feet
48300Leveling feet
Ventilated roof
TVN10080
Roof-elevating items
48152Ceiling raisers (pack 4 units)

Spare parts

Image Reference Description Data sheet
Accessory packs for plates
48419 M8 anti-rotation nuts
Inner door
PIN200100
Lock with handle
48633 Lever handle
Hinges and retainers
48082
48626 Standard hinge 120° (Pack of 4 pcs.)
48628 180° Right hinge (Pack of 4 pcs.)
48629 180° Left hinge (Pack of 4 pcs.)
