Reference: BIG20016040POD

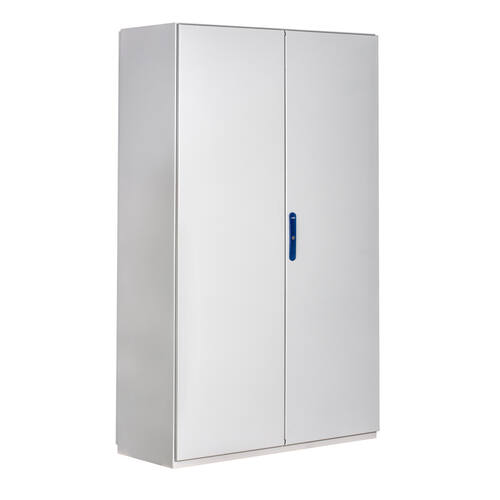

Floor-standing compact cabinet BIG IP55 2000x1600x400. Double door with plate
| Dimensions (mm) | Door type | With mounting plate | ||
|---|---|---|---|---|
| Height | Width | Depth | ||
| 2000 | 1600 | 400 | Double opaque | Yes |
Technical data
| Technical data | Protection degree | IP55 | NEMA degree of protection | 1, 12 | Resistance to impact | IK10 |
|---|---|
| Certificates and regulations | Directive | 2014/35/EU | Norms | UNE-EN 62208,UNE-EN 61439-1 |
Accessories
| Image | Reference | Description | Data sheet |
|---|---|---|---|
| Lifting eyebolts | |||
 | 48115 | M12 lifting eyebolts | |
 | 48460 | 5-mm double-bit key | |
| Insulation kit | |||
 | 48690 | Cable entry cover insulation kit | |
| Total plain mounting plates | |||
 | PL200160 | Total metal plain mounting plate 2000x1600 | |
| Parcial plain mounting plates | |||
 | PLP30160 | Partial plain metal mounting plate 300x1600 | |
| Accessory packs for plates | |||
| 48471 | Total plate assembly support | ||
 | 48472 | Partial plate assembly support | |
| 48627 | Central reinforcement supports for 1600-mm wide plate | ||
| Wall-mounting pack | |||
 | 48113 | Wall-mounting brackets | |
| Insulation joint | |||
 | 48478 | Light grey corner finishing joint strip (6 m) | |
| Insulation brush | |||
 | 48481 | Insulation brush (2 m) | |
| Modular frame (without partition) | |||
 | BTM200160 | Modular frame 2000x1600 | |
| Horizontal trunking support | |||
 | 49368 | Horizontal duct support | |
| Ventilated plinth (corner pieces and front covers) | |||
 | ZCLV2080 | Ventilated sheet steel plinth 200x800. Corner + front cover | |
| Plinth (corner pieces and front covers) | |||
 | ZCL10160 | Sheet steel plinth 100x1600. Corner pieces and front and rear covers | |
 | ZCL20160 | Sheet steel plinth 200x1600. Corner pieces and front and rear covers | |
| Side covers for plinth | |||
 | TLZCL1040 | Side cover for sheet steel plinth 100x400 | |
 | TLZCL2040 | Side cover for sheet steel plinth 200x400 | |
| Mounting profiles. FOR MODULAR FRAME | |||
 | PMB400 | Profile for modular frame | |
| Mounting profiles. OUTSIDE ASSEMBLY | |||
 | PME2000 | External mounting profile | |
| Mounting profiles. REINFORCED OUTSIDE ASSEMBLY | |||
 | PMER1600 | Reinforced external mounting profile | |
| Mounting profiles. INTERIOR ASSEMBLY | |||
 | PMI2000 | Internal mounting profile | |
| Mounting profiles. REINFORCED INTERIOR ASSEMBLY | |||
 | PMIR1600 | Reinforced internal mounting profile | |
| Mounting profiles. VERTICAL UPRIGHTS FOR BIG CABINETS | |||
 | PVB2000 | Vertical profile for BIG cabinet | |
| Foam cable passage support | |||
 | SEP800 | Foam support cable entry L800 | |
| Mounting profiles. CABLE TRACTION | |||
 | PTC800 | Cable traction profile L800 | |
| Clamps | |||
 | 48637 | Cable clamp Ø 10–16 mm | |
 | 48638 | Cable clamp Ø 18–28 mm | |
 | 48639 | Cable clamp Ø 30–40 mm | |
| Swing tray | |||
 | 48776 | Swing-out tray for PC | |
| Compact canopy (galvanised steel) | |||
 | TEJ16040COM | Galvanized steel canopy 1600x400 | |
| Lock with handle | |||
 | 48633 | Lever-handle lock + 5-mm double-bit insert | |
| Door retainer | |||
 | 48466/B | Door retainer L=230 | |
| Door switch with lever | |||
 | 48462 | Door switch with adjustable lever. Screw fixing | |
| Door switch with push button | |||
 | 48620 | Door switch with linear push button. Screw fixing | |
| Transport casters | |||
 | 48290 | Transport wheels 150 kg | |
| Levelling feet | |||
 | 48300 | Leveling feet 270 kg | |
Spare parts
| Image | Reference | Description | Data sheet |
|---|---|---|---|
| PACK 5: Opaque doors | |||

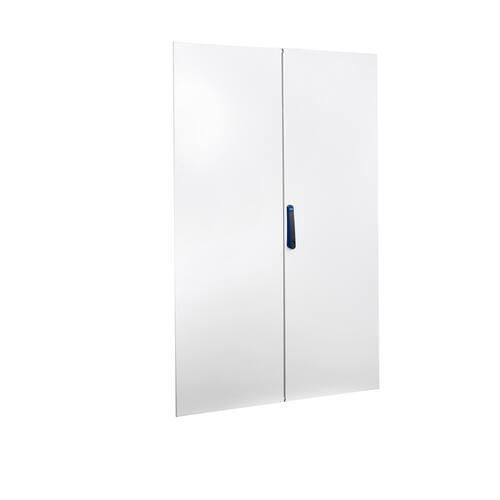

 | PODCS200160 | Pack 5: Symmetrical double opaque door | |
 | 48634 | Trim lock + 5-mm double-bit insert | |
| Hinges and retainers | |||
 | 48082 | Lock retainer | |
 | 48626 | Standard hinge 120° | |
 | 48628 | 180° Right hinge | |
 | 48629 | 180° Left hinge | |
| Rods for inner locks | |||
 | 48061 | Single-door / active double-door rod 2000/2200 mm height | |
| Internal lock | |||
 | 48085 | Double-door internal lock + rod 2000 | |
