Reference: BIG2006040PO

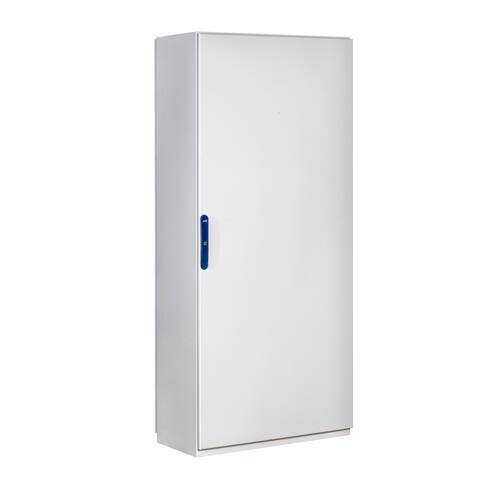

Floor-standing compact cabinet BIG IP65 2000x600x400. Opaque door with plate

← Return to the list
Dimensions (mm) Door type With mounting plate
Height Width Depth
2000600400Single opaqueYes
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
BIG2006040PO

Technical data

Technical data
Protection degreeIP65
NEMA degree of protection1, 4, 12
Resistance to impactIK10
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Lifting eyebolts
48115M12 lifting eyebolts
484605-mm double-bit key
Insulation kit
48690Cable entry cover insulation kit
Total plain mounting plates
PL20060Total metal plain mounting plate 2000x600
Parcial plain mounting plates
PLP2060Partial plain metal mounting plate 200x600
PLP3060Partial plain metal mounting plate 300x600
PLP4060Partial plain metal mounting plate 400x600
PLP6060Partial plain metal mounting plate 600x600
Parcial plain horizontal mounting plates
PLPH2060Partial plain metal mounting plate for MCCB horizontal 200x600
PLPH3060Partial plain metal mounting plate for MCCB horizontal 300x600
Plate reinforcement kit
KRPL60Reinforcement kit for plates width 600 mm
Accessory packs for plates
48471Total plate assembly support
48472Partial plate assembly support
Wall-mounting pack
48113Wall-mounting brackets
Insulation joint
48478Light grey corner finishing joint strip (6 m)
Insulation brush
48481Insulation brush (2 m)
Modular frame (without partition)
BTM20060Modular frame 2000x600
Covers for modular frame. FIXED MODULAR
TMF1560Fixed modular cover 24 mod 150x600
TMF2060Fixed modular cover 24 mod 200x600
TMF3060Fixed modular cover 2x24 mod 300x600
TMF4060Fixed modular cover 2x24 mod 400x600
Covers for modular frame. FIXED PLAIN
TCF0560Fixed blind modular cover 50x600
TCF1060Fixed blind modular cover 100x600
TCF1560Fixed blind modular cover 150x600
TCF2060Fixed blind modular cover 200x600
TCF3060Fixed blind modular cover 300x600
TCF4060Fixed blind modular cover 400x600
TCF6060Fixed blind modular cover 600x600
Covers for modular frame. MODULAR HINGED
TMA1560Modular hinged cover 23 mod 150x600
TMA2060Modular hinged cover 23 mod 200x600
TMA3060Modular hinged cover 2x23 mod 300x600
TMA4060Modular hinged cover 2x23 mod 400x600
Attachment kit + DIN rail (for modular covers)
48154Fixing kit + DIN rail 600 mm
Vertical trunking support kit
49366Vertical duct + DIN rail support 600 mm
Horizontal trunking support
49368Horizontal duct support
Ventilated plinth (corner pieces and front covers)
ZCLV2060Ventilated sheet steel plinth 200x600. Corner + front cover
Plinth (corner pieces and front covers)
ZCL1060Sheet steel plinth 100x600. Corner pieces and front and rear covers
ZCL2060Sheet steel plinth 200x600. Corner pieces and front and rear covers
100+100 plinth (corner pieces and front covers)
ZCL2T1060Sheet steel plinth 200x600. Corner pieces and 2 covers 100+100
Side covers for plinth
TLZCL1040Side cover for sheet steel plinth 100x400
TLZCL2040Side cover for sheet steel plinth 200x400
Mounting profiles. FOR MODULAR FRAME
PMB400Profile for modular frame
Mounting profiles. OUTSIDE ASSEMBLY
PME2000External mounting profile
Mounting profiles. INTERIOR ASSEMBLY
PMI2000Internal mounting profile
Mounting profiles. VERTICAL UPRIGHTS FOR BIG CABINETS
PVB2000Vertical profile for BIG cabinet
Mounting profiles. HORIZONTAL UPRIGHTS FOR BIG CABINETS
PHB600Horizontal profile for BIG cabinet INOX
Mounting profiles. FOR DOORS
PPAP600Profile galvanised steel width 600 mm
Foam cable passage support
SEP600Foam support cable entry L600
Mounting profiles. CABLE TRACTION
PTC600Cable traction profile L600
Clamps
48637Cable clamp Ø 10–16 mm
48638Cable clamp Ø 18–28 mm
48639Cable clamp Ø 30–40 mm
Swing tray
48776Swing-out tray for PC
Compact canopy (galvanised steel)
TEJ6040COMGalvanized steel canopy 600x400
Transparent single-door
PT20060Transparent door
Lock with handle
48633Lever-handle lock + 5-mm double-bit insert
Door retainer
48466/BDoor retainer L=230
Door switch with lever
48462Door switch with adjustable lever. Screw fixing
Door switch with push button
48620Door switch with linear push button. Screw fixing
Transport casters
48290Transport wheels 150 kg
Levelling feet
48300Leveling feet 270 kg
Document pocket
49386Metal document pocket 600

Spare parts

Image Reference Description Data sheet
PACK 5: Opaque doors
PO20060 Pack 5: Single opaque door
Inner door
PIN20060 Inner door 2000x600
48634 Trim lock + 5-mm double-bit insert
Hinges and retainers
48082 Lock retainer
48626 Standard hinge 120°
48628 180° Right hinge
48629 180° Left hinge
Rods for inner locks
48061 Single-door / active double-door rod 2000/2200 mm height
