Reference: ENL1806060PT/SP

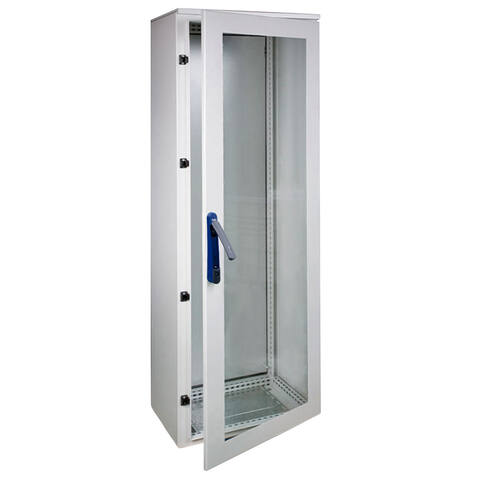

Floor-standing cabinet ENL IP55 1800x600x600. Transparent door without plate

← Return to the list
Dimensions (mm) Door type With mounting plate
Height Width Depth
1800600600Single transparentNo
Plan pdf pdf
Data sheet pdf
ENL1806060PT/SP

Technical data

Technical data
Protection degreeIP55
NEMA degree of protection1, 12
Resistance to impactIK09
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Lifting eyebolts
48115M12 lifting eyebolts
484605-mm double-bit key
Insulation joint
48480Adhesive insulation joint
Total plain mounting plates
PL18060Total metal plain mounting plate 1800x600
Fixed trays for PC control cabinets
BNF6060Fixed tray
Parcial plain mounting plates
PLP2060Partial plain metal mounting plate 200x600
PLP3060Partial plain metal mounting plate 300x600
PLP4060Partial plain metal mounting plate 400x600
PLP6060Partial plain metal mounting plate 600x600
PACK 4: Side panels
PLA18060Pack 4: Side panels
Parcial plain horizontal mounting plates
PLPH2060Partial plain metal mounting plate for MCCB horizontal 200x600
PLPH3060Partial plain metal mounting plate for MCCB horizontal 300x600
Linking plates
PLC1800Metal linking plate for ENL1800 cabinet
PACK 5: Opaque doors
PO18060Pack 5: Single opaque door
Separation plates
PLS18060Metal separation plate 1800x600
Plate reinforcement kit
KRPL60Reinforcement kit for plates width 600 mm
Slide way
48500Sliding guide joint pack (screws + M8x16 nuts)
GD600Guide set 600
Accessory packs for plates
48471Total plate assembly support
48472Partial plate assembly support
48473Total plate central support
48474Linking plate assembly support
48624Bracket for partial separator plate assembly
Connection packs for combinable cabinets
48111Internal connection of combinable cabinets
48112Corner connection of combinable cabinets
48116Mixed connection pack: 4 pcs. internal connection + 4 pcs. corner connection
Connection and lifting packs
48114Linking and lifting brackets for linkable cabinets
Wall-mounting pack
48113Wall-mounting brackets
Insulation joint
48478Light grey corner finishing joint strip (6 m)
Insulation joint for horizontal profiles
48479Insulation joint for horizontal profiles (6 m)
Insulation joint pack
48636ENL cabinet joint insulation strip pack
Insulation brush
48481Insulation brush (2 m)
Earthquake plinth
KRSZCL106060100x600x600
Trim frame
MEB18060Trim frame 1800x600
Modular frame (without partition)
BTM18060Modular frame 1800x600
Covers for modular frame. FIXED MODULAR
TMF1560Fixed modular cover 24 mod 150x600
TMF2060Fixed modular cover 24 mod 200x600
TMF3060Fixed modular cover 2x24 mod 300x600
TMF4060Fixed modular cover 2x24 mod 400x600
Covers for modular frame. FIXED PLAIN
TCF0560Fixed blind modular cover 50x600
TCF1060Fixed blind modular cover 100x600
TCF1560Fixed blind modular cover 150x600
TCF2060Fixed blind modular cover 200x600
TCF3060Fixed blind modular cover 300x600
TCF4060Fixed blind modular cover 400x600
TCF6060Fixed blind modular cover 600x600
Covers for modular frame. MODULAR HINGED
TMA1560Modular hinged cover 23 mod 150x600
TMA2060Modular hinged cover 23 mod 200x600
TMA3060Modular hinged cover 2x23 mod 300x600
TMA4060Modular hinged cover 2x23 mod 400x600
Attachment kit + DIN rail (for modular covers)
48154Fixing kit + DIN rail 600 mm
Vertical trunking support kit
49366Vertical duct + DIN rail support 600 mm
Horizontal trunking support
49368Horizontal duct support
Auxiliary module
MEX1803060Auxiliary module 1800x300x600
MEX1804060Auxiliary module 1800x400x600
Busbar chamber
CE306060Busbar chamber top-bottom
CE406060Busbar chamber top-bottom
Panels for busbar chamber. SIDE PANELS
PLCE3060Side panel
PLCE4060Side panel
Corner module
ESQ1806060Corner module 1800x600x600
Ventilated plinth (corner pieces and front covers)
ZCLV2060Ventilated sheet steel plinth 200x600. Corner + front cover
Plinth (corner pieces and front covers)
ZCL1060Sheet steel plinth 100x600. Corner pieces and front and rear covers
ZCL2060Sheet steel plinth 200x600. Corner pieces and front and rear covers
100+100 plinth (corner pieces and front covers)
ZCL2T1060Sheet steel plinth 200x600. Corner pieces and 2 covers 100+100
Side covers for plinth
TLZCL1060Side cover for sheet steel plinth 100x600
TLZCL2060Side cover for sheet steel plinth 200x600
Mounting profiles. REINFORCED OUTSIDE ASSEMBLY
PMER600Reinforced external mounting profile
Mounting profiles. INTERIOR PARTITION
PPI600Interior partition profile
Mounting profiles. FOR DOORS
PPAP600Profile galvanised steel width 600 mm
Foam cable passage support
SEP600Foam support cable entry L600
Mounting profiles. CABLE TRACTION
PTC600Cable traction profile L600
Swing tray
48776Swing-out tray for PC
Attachable canopy (galvanised steel)
TEJ6060ENLGalvanized steel canopy 600x600
Side canopy for attachable canopy (galvanised steel)
TEJL60Side canopy for cabinet depth 600 mm (right + left)
Central canopy connection for attachable canopy (galvanised steel)
TEJC60Central union of canopies for cabinet depth 600 mm
Side door (for ENL cabinet)
POS18060Side door
Interlocking and actuation systems for doors
48515Interlocking and operating system for main cabinet
Interlocking for doors
48516Interlock kit
48634Trim lock + 5-mm double-bit insert
Inserts for lock with handle
484638-mm triangular insert lock + key
48464Keyless pressure insert lock
48465Security insert lock + code 333 key
485416.5-mm triangular insert lock + key
48585Security insert lock + code 405 key
48588Security insert lock + code 1242E key
Door retainer
48466Door retainer L=230
Door switch with lever
48462Door switch with adjustable lever. Screw fixing
Door switch with push button
48620Door switch with linear push button. Screw fixing
Transport casters
48290Transport wheels 150 kg
Levelling feet
48300Leveling feet 270 kg
Ventilated roof
TVN6060Ventilated roof 600x600
Roof-elevating items
48152Roof spacers
Document pocket
49386Metal document pocket 600

Spare parts

Image Reference Description Data sheet
Accessory packs for plates
48419 Separation plate assembly supports
Inner door
PIN18060 Inner door 1800x600
Lock with handle
48633 Lever-handle lock + 5-mm double-bit insert
Hinges and retainers
48082 Lock retainer
48626 Standard hinge 120°
48628 180° Right hinge
48629 180° Left hinge
Rods for inner locks
48060 Single-door / active double-door rod 1650/1800 mm height
