Reference: ENL1808050PT/SP

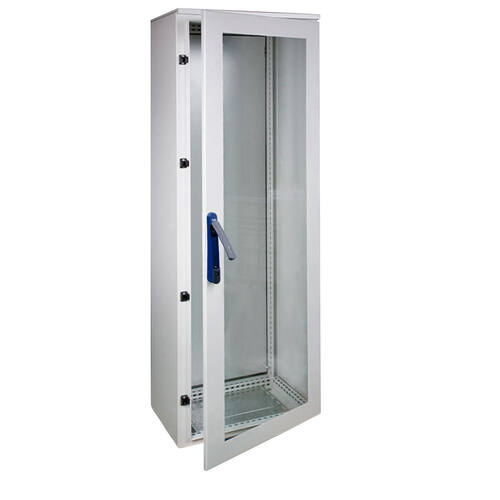

Floor-standing cabinet ENL IP55 1800x800x500. Transparent door without plate

← Return to the list
Dimensions (mm) Door type With mounting plate
Height Width Depth
1800800500Single transparentNo
Plan pdf pdf
Data sheet pdf
ENL1808050PT/SP

Technical data

Technical data
Protection degreeIP55
NEMA degree of protection1, 12
Resistance to impactIK09
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Lifting eyebolts
48115M12 lifting eyebolts
484605-mm double-bit key
Insulation joint
48480Adhesive insulation joint
Total plain mounting plates
PL18080Total metal plain mounting plate 1800x800
Parcial plain mounting plates
PLP2080Partial plain metal mounting plate 200x800
PLP3080Partial plain metal mounting plate 300x800
PLP4080Partial plain metal mounting plate 400x800
PLP6080Partial plain metal mounting plate 600x800
PACK 4: Side panels
PLA18050Pack 4: Side panels
Parcial plain horizontal mounting plates
PLPH2080Partial plain metal mounting plate for MCCB horizontal 200x800
PLPH3080Partial plain metal mounting plate for MCCB horizontal 300x800
Linking plates
PLC1800Metal linking plate for ENL1800 cabinet
PACK 5: Opaque doors
PO18080Pack 5: Single opaque door
Separation plates
PLS18050Metal separation plate 1800x500
Plate reinforcement kit
KRPL80Reinforcement kit for plates width 800 mm
Slide way
48500Sliding guide joint pack (screws + M8x16 nuts)
GD800Guide set 800
Accessory packs for plates
48471Total plate assembly support
48472Partial plate assembly support
48473Total plate central support
48474Linking plate assembly support
48624Bracket for partial separator plate assembly
Connection packs for combinable cabinets
48111Internal connection of combinable cabinets
48112Corner connection of combinable cabinets
48116Mixed connection pack: 4 pcs. internal connection + 4 pcs. corner connection
Connection and lifting packs
48114Linking and lifting brackets for linkable cabinets
Wall-mounting pack
48113Wall-mounting brackets
Insulation joint
48478Light grey corner finishing joint strip (6 m)
Insulation joint for horizontal profiles
48479Insulation joint for horizontal profiles (6 m)
Insulation joint pack
48636ENL cabinet joint insulation strip pack
Insulation brush
48481Insulation brush (2 m)
Trim frame
MEB18080Trim frame 1800x800
Modular frame (without partition)
BTM18080Modular frame 1800x800
Modular frame (with partition column)
BTM18080/E200Modular frame 1800x800 with 200 mm partition column
Covers for modular frame. FIXED MODULAR
TMF1580Fixed modular cover 34 mod 150x800
TMF2080Fixed modular cover 34 mod 200x800
TMF3080Fixed modular cover 2x34 mod 300x800
TMF4080Fixed modular cover 2x34 mod 400x800
Covers for modular frame. FIXED PLAIN
TCF0580Fixed blind modular cover 50x800
TCF1080Fixed blind modular cover 100x800
TCF1580Fixed blind modular cover 150x800
TCF2080Fixed blind modular cover 200x800
TCF3080Fixed blind modular cover 300x800
TCF4080Fixed blind modular cover 400x800
TCF6080Fixed blind modular cover 600x800
Covers for modular frame. MODULAR HINGED
TMA1580Modular hinged cover 33 mod 150x800
TMA2080Modular hinged cover 33 mod 200x800
TMA3080Modular hinged cover 2x33 mod 300x800
TMA4080Modular hinged cover 2x33 mod 400x800
Attachment kit + DIN rail (for modular covers)
48156Fixing kit + DIN rail 800 mm
Vertical trunking support kit
49367Vertical duct + DIN rail support 800 mm
Horizontal trunking support
49368Horizontal duct support
Auxiliary module
MEX1803050Auxiliary module 1800x300x500
MEX1804050Auxiliary module 1800x400x500
Busbar chamber
CE308050Busbar chamber top-bottom
CE408050Busbar chamber top-bottom
Panels for busbar chamber. SIDE PANELS
PLCE3050Side panel
PLCE4050Side panel
Ventilated plinth (corner pieces and front covers)
ZCLV2080Ventilated sheet steel plinth 200x800. Corner + front cover
Plinth (corner pieces and front covers)
ZCL1080Sheet steel plinth 100x800. Corner pieces and front and rear covers
ZCL2080Sheet steel plinth 200x800. Corner pieces and front and rear covers
100+100 plinth (corner pieces and front covers)
ZCL2T1080Sheet steel plinth 200x800. Corner pieces and 2 covers 100+100
Side covers for plinth
TLZCL1050Side cover for sheet steel plinth 100x500
TLZCL2050Side cover for sheet steel plinth 200x500
Mounting profiles. REINFORCED OUTSIDE ASSEMBLY
PMER800Reinforced external mounting profile
Mounting profiles. INTERIOR PARTITION
PPI500Interior partition profile
Mounting profiles. FOR DOORS
PPAP800Profile galvanised steel width 800 mm
Foam cable passage support
SEP800Foam support cable entry L800
Mounting profiles. CABLE TRACTION
PTC800Cable traction profile L800
Swing tray
48776Swing-out tray for PC
Interlocking and actuation systems for doors
48515Interlocking and operating system for main cabinet
Interlocking for doors
48517Interlock kit
48634Trim lock + 5-mm double-bit insert
Inserts for lock with handle
484638-mm triangular insert lock + key
48464Keyless pressure insert lock
48465Security insert lock + code 333 key
485416.5-mm triangular insert lock + key
48585Security insert lock + code 405 key
48588Security insert lock + code 1242E key
Door retainer
48466Door retainer L=230
Door switch with lever
48462Door switch with adjustable lever. Screw fixing
Door switch with push button
48620Door switch with linear push button. Screw fixing
Transport casters
48290Transport wheels 150 kg
Levelling feet
48300Leveling feet 270 kg
Ventilated roof
TVN8050Ventilated roof 800x500
Roof-elevating items
48152Roof spacers
Document pocket
49387Metal document pocket 800

Spare parts

Image Reference Description Data sheet
Accessory packs for plates
48419 Separation plate assembly supports
Inner door
PIN18080 Inner door 1800x800
Lock with handle
48633 Lever-handle lock + 5-mm double-bit insert
Hinges and retainers
48082 Lock retainer
48626 Standard hinge 120°
48628 180° Right hinge
48629 180° Left hinge
Rods for inner locks
48060 Single-door / active double-door rod 1650/1800 mm height
