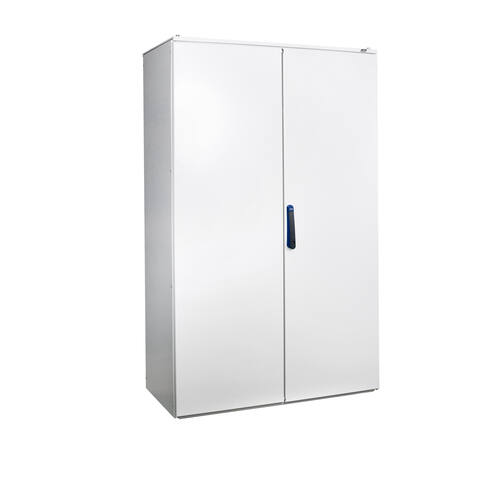

IP55 Rolled steel floor-standing combinable cabinets
| Dimensions (mm) | Door type | With mounting plate | ||
|---|---|---|---|---|
| Height (mm) | Width (mm) | Depth (mm) | ||
| 2000 | 1000 | 400 | Opaca doble simétrica | No |
Technical data
| Technical data | Protection degree | IP55 | NEMA degree of protection | 1, 12 | Resistance to impact | IK10 |
|---|---|
| Certificates and regulations | Directive | 2014/35/EU | Norms | UNE-EN 62208,UNE-EN 61439-1 |
Accessories
| Image | Reference | Description | Data sheet |
|---|---|---|---|
| Lifting eyebolts | |||
 | 48115 | Lifting eyes | |
| Insulation joint | |||
 | 48480 | Light gray corner finishing gasket (6 m) | |
| Total plain mounting plates | |||
 | PL200100 | ||
| Parcial plain mounting plates | |||
 | PLP20100 | ||
 | PLP30100 | ||
 | PLP40100 | ||
 | PLP60100 | ||
| PACK 4: Side panels | |||
 | PLA20040 | Pack 4: Side panels | |
| Linking plates | |||
 | PLC2000 | ||
| Plate reinforcement kit | |||
 | KRPL100 | Reinforcement kit for plates width 1000 mm | |
| Slide way | |||
 | 48500 | Quarter-turn mailbox type closure with key code 1242E 1P | |
 | GD1000 | Guide set 400 | |
| Accessory packs for plates | |||
 | 48471 | Allen screw M8x16 | |
 | 48472 | Allen screw M12x20 | |
 | 48473 | Support for full plate mounting (Pack 4 pcs) | |
 | 48474 | Support for partial plate mounting (Pack 4 pcs) | |
 | 48624 | Partial separation plate mounting bracket (Pack of 2 pcs.) | |
| Connection packs for combinable cabinets | |||
 | 48111 | Inner junction for linkable cabinets (pack 6 units) | |
 | 48112 | Corner junction for linkable cabinets (pack 4 units) | |
 | 48116 | Mixed linking kit; 4 units inner junction + 4 units corner junction | |
| Connection and lifting packs | |||
 | 48114 | Linking and lifting brackets for linkable cabinets (2 units) | |
| Wall-mounting pack | |||
 | 48113 | Wall fixing (pack 2 units) | |
| Insulation joint | |||
 | 48478 | Lifting eyebolts M12 (Pack 2 pcs) | |
| Insulation joint for horizontal profiles | |||
| 48479 | Anti-rotation screw M6x10. Hex PH+R hardness 4.8 | ||
| Insulation joint pack | |||
 | 48636 | Insulating gasket set for ENL cabinets | |
| Insulation brush | |||
 | 48481 | Insulation gasket for ENL cabinet joint (horizontal profiles) (6 m) | |
| Modular frame (without partition) | |||
 | BTM200100 | ||
| Modular frame (with partition door) | |||
 | BTM200100/P400 | ||
| Modular frame (with partition column) | |||
 | BTM200100/E200 | ||
| Covers for modular frame. FIXED MODULAR | |||
 | TMF15100 | ||
 | TMF20100 | ||
 | TMF30100 | ||
 | TMF40100 | ||
| Covers for modular frame. FIXED PLAIN | |||
 | TCF05100 | ||
 | TCF10100 | ||
 | TCF15100 | ||
 | TCF20100 | ||
 | TCF30100 | ||
 | TCF40100 | ||
 | TCF60100 | ||
| Covers for modular frame. MODULAR HINGED | |||
 | TMA15100 | ||
 | TMA20100 | ||
 | TMA30100 | ||
 | TMA40100 | ||
| Attachment kit + DIN rail (for modular covers) | |||
 | 48158 | Fixing kit + DIN rail 1000 mm | |
| Horizontal trunking support | |||
 | 49368 | Horizontal duct support | |
| Ventilated plinth (corner pieces and front covers) | |||
 | ZCLV20100 | ||
| Plinth (corner pieces and front covers) | |||
 | ZCL10100 | ||
 | ZCL20100 | ||
| 100+100 plinth (corner pieces and front covers) | |||
 | ZCL2T10100 | ||
| Side covers for plinth | |||
 | TLZCL1040 | ||
 | TLZCL2040 | ||
| Mounting profiles. REINFORCED OUTSIDE ASSEMBLY | |||
 | PMER1000 | Reinforced external mounting profile | |
| Keys | |||
 | 48460 | Quarter-turn butterfly closure with key code 333 (surface) | |
| Mounting profiles. INTERIOR PARTITION | |||
 | PPI400 | Interior partition profile | |
| Mounting profiles. FOR DOORS | |||
 | PPAP1000 | ||
| Foam cable passage support | |||
 | SEP500 | Foam support cable entry L500 | |
| Mounting profiles. CABLE TRACTION | |||
 | PTC500 | Cable traction profile L500 | |
| Swing tray | |||
 | 48776 | Swing-out tray for PC | |
| Side door (for ENL cabinet) | |||
 | POS200100 | Side door | |
| Interlocking and actuation systems for doors | |||
 | 48515 | Iberdrola Levante cylinder with key | |
| Interlocking for doors | |||
 | 48518 | Interlock kit | |
 | 48634 | Decorative lock | |
| Internal lock | |||

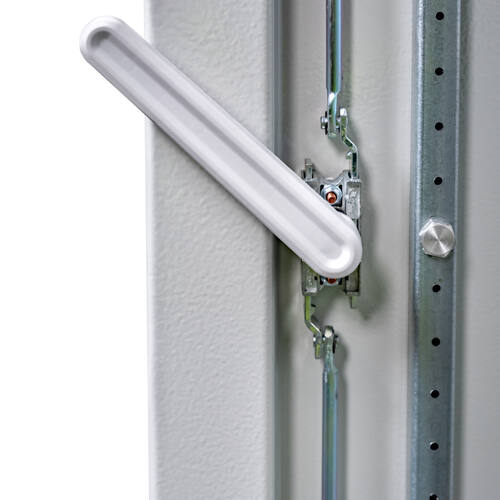

 | 48085 | ||
| Inserts for lock with handle | |||
 | 48463 | Limit switch | |
 | 48464 | Triangle insert closure + triangle key 8 | |
 | 48465 | Pressure insert closure without key | |
 | 48541 | Countersunk Torx screw M6x23 | |
 | 48585 | Zamak rod control for BIG INOX cabinet | |
 | 48588 | Security insert lock with key code 405 | |
| Door retainer | |||
 | 48466 | Security insert closure with key code 333 | |
| Door switch with lever | |||
 | 48462 | Zamak double latch key 5 mm | |
| Door switch with push button | |||
 | 48620 | Door switch with screw fixation Argenta Plus | |
| Transport casters | |||
 | 48290 | Transport wheels | |
| Levelling feet | |||
 | 48300 | Leveling feet | |
| Ventilated roof | |||
 | TVN10040 | ||
| Roof-elevating items | |||
 | 48152 | Ceiling raisers (pack 4 units) | |
Spare parts
| Image | Reference | Description | Data sheet |
|---|---|---|---|
| PACK 5: Opaque doors | |||
 | PODCS200100 | Pack 5: Symmetrical double opaque door | |
| Accessory packs for plates | |||
 | 48419 | M8 anti-rotation nuts | |
| Inner door | |||
 | PIN200100 | ||
| Lock with handle | |||
 | 48633 | Lever handle | |
| Hinges and retainers | |||
 | 48082 | ||
 | 48626 | Standard hinge 120° (Pack of 4 pcs.) | |
 | 48628 | 180° Right hinge (Pack of 4 pcs.) | |
 | 48629 | 180° Left hinge (Pack of 4 pcs.) | |
| Rods for inner locks | |||
 | 48061 | Rod for single and double active doors 2000/2200 | |
