Reference: ENL20010080PT/DC

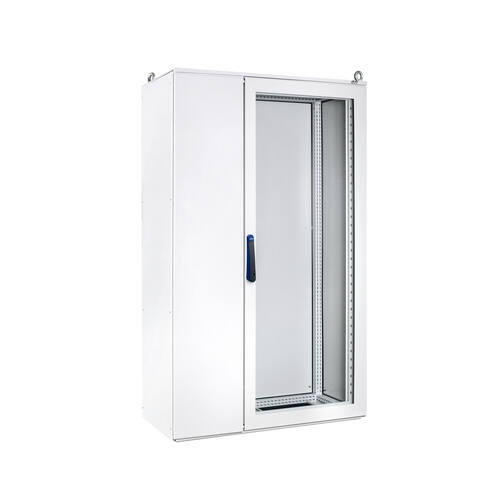

Floor-standing cabinet ENL IP55 2000x1000x800. Double door without plate

← Return to the list
Dimensions (mm) Door type With mounting plate
Height Width Depth
20001000800Asymmetrical double transparentNo
Plan pdf pdf
Data sheet pdf
ENL20010080PT/DC

Technical data

Technical data
Protection degreeIP55
NEMA degree of protection1, 12
Resistance to impactIK09
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Lifting eyebolts
48115M12 lifting eyebolts
484605-mm double-bit key
Insulation joint
48480Adhesive insulation joint
Total plain mounting plates
PL200100Total metal plain mounting plate 2000x1000
Parcial plain mounting plates
PLP20100Partial plain metal mounting plate 200x1000
PLP30100Partial plain metal mounting plate 300x1000
PLP40100Partial plain metal mounting plate 400x1000
PLP60100Partial plain metal mounting plate 600x1000
PACK 4: Side panels
PLA20080Pack 4: Side panels
Linking plates
PLC2000Metal linking plate for ENL2000 cabinet
Plate reinforcement kit
KRPL100Reinforcement kit for plates width 1000 mm
Slide way
48500Sliding guide joint pack (screws + M8x16 nuts)
GD1000Guide set 1000
Accessory packs for plates
48471Total plate assembly support
48472Partial plate assembly support
48473Total plate central support
48474Linking plate assembly support
48624Bracket for partial separator plate assembly
Connection packs for combinable cabinets
48111Internal connection of combinable cabinets
48112Corner connection of combinable cabinets
48116Mixed connection pack: 4 pcs. internal connection + 4 pcs. corner connection
Connection and lifting packs
48114Linking and lifting brackets for linkable cabinets
Wall-mounting pack
48113Wall-mounting brackets
Insulation joint
48478Light grey corner finishing joint strip (6 m)
Insulation joint for horizontal profiles
48479Insulation joint for horizontal profiles (6 m)
Insulation joint pack
48636ENL cabinet joint insulation strip pack
Insulation brush
48481Insulation brush (2 m)
Modular frame (without partition)
BTM200100Modular frame 2000x1000
Modular frame (with partition door)
BTM200100/P400Modular frame 2000x1000 with 400 mm partition door
Modular frame (with partition column)
BTM200100/E200Modular frame 2000x1000 with 200 mm partition column
Covers for modular frame. FIXED MODULAR
TMF15100Fixed modular cover 46 mod 150x1000
TMF20100Fixed modular cover 46 mod 200x1000
TMF30100Fixed modular cover 2x46 mod 300x1000
TMF40100Fixed modular cover 2x46 mod 400x1000
Covers for modular frame. FIXED PLAIN
TCF05100Fixed blind modular cover 50x1000
TCF10100Fixed blind modular cover 100x1000
TCF15100Fixed blind modular cover 150x1000
TCF20100Fixed blind modular cover 200x1000
TCF30100Fixed blind modular cover 300x1000
TCF40100Fixed blind modular cover 400x1000
TCF60100Fixed blind modular cover 600x1000
Covers for modular frame. MODULAR HINGED
TMA15100Modular hinged cover 46 mod 150x1000
TMA20100Modular hinged cover 46 mod 200x1000
TMA30100Modular hinged cover 2x46 mod 300x1000
TMA40100Modular hinged cover 2x46 mod 400x1000
Attachment kit + DIN rail (for modular covers)
48158Fixing kit + DIN rail 1000 mm
Horizontal trunking support
49368Horizontal duct support
Ventilated plinth (corner pieces and front covers)
ZCLV20100Ventilated sheet steel plinth 200x1000. Corner + front cover
Plinth (corner pieces and front covers)
ZCL10100Sheet steel plinth 100x1000. Corner pieces and front and rear covers
ZCL20100Sheet steel plinth 200x1000. Corner pieces and front and rear covers
100+100 plinth (corner pieces and front covers)
ZCL2T10100Sheet steel plinth 200x1000. Corner pieces and 2 covers 100+100
Side covers for plinth
TLZCL1080Side cover for sheet steel plinth 100x800
TLZCL2080Side cover for sheet steel plinth 200x800
Mounting profiles. REINFORCED OUTSIDE ASSEMBLY
PMER1000Reinforced external mounting profile
Mounting profiles. INTERIOR PARTITION
PPI800Interior partition profile
Mounting profiles. FOR DOORS
PPAP1000Profile galvanised steel width 1000 mm
Foam cable passage support
SEP500Foam support cable entry L500
Mounting profiles. CABLE TRACTION
PTC500Cable traction profile L500
Swing tray
48776Swing-out tray for PC
Attachable canopy (galvanised steel)
TEJ10080ENLGalvanized steel canopy 1000x800
Side canopy for attachable canopy (galvanised steel)
TEJL80Side canopy for cabinet depth 800 mm (right + left)
Central canopy connection for attachable canopy (galvanised steel)
TEJC80Central union of canopies for cabinet depth 800 mm
Side door (for ENL cabinet)
POS200100Side door
Interlocking and actuation systems for doors
48515Interlocking and operating system for main cabinet
Interlocking for doors
48518Interlock kit
48634Trim lock + 5-mm double-bit insert
Internal lock
48085Double-door internal lock + rod 2000
Inserts for lock with handle
484638-mm triangular insert lock + key
48464Keyless pressure insert lock
48465Security insert lock + code 333 key
485416.5-mm triangular insert lock + key
48585Security insert lock + code 405 key
48588Security insert lock + code 1242E key
Door retainer
48466Door retainer L=230
Door switch with lever
48462Door switch with adjustable lever. Screw fixing
Door switch with push button
48620Door switch with linear push button. Screw fixing
Transport casters
48290Transport wheels 150 kg
Levelling feet
48300Leveling feet 270 kg
Ventilated roof
TVN10080Ventilated roof 1000x800
Roof-elevating items
48152Roof spacers

Spare parts

Image Reference Description Data sheet
Accessory packs for plates
48419 Separation plate assembly supports
Transparent asymmetric double-door
PTDCA200100 Asymmetrical double transparent door
Transparent symmetric double-door
PTDCS200100 Symmetrical double transparent door
Inner door
PIN200100 Inner door 2000x1000
Lock with handle
48633 Lever-handle lock + 5-mm double-bit insert
Hinges and retainers
48082 Lock retainer
48626 Standard hinge 120°
48628 180° Right hinge
48629 180° Left hinge
Rods for inner locks
48061 Single-door / active double-door rod 2000/2200 mm height
