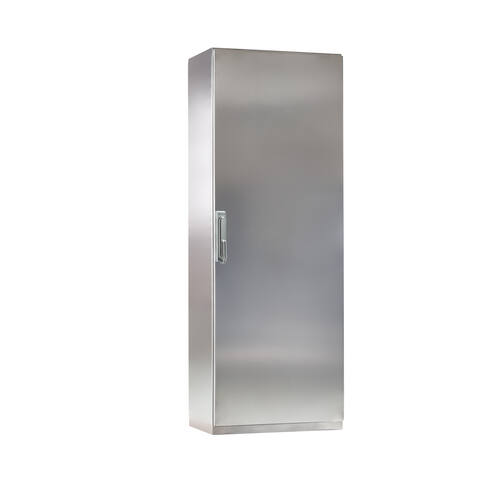

BIG16510040PO/INX

Dimensions (mm)			Door type	With mounting plate
Height	Width	Depth	Door type	With mounting plate
1650	1000	400	Single opaque	Yes

Technical data

Technical data
Protection degree	IP65
NEMA degree of protection	1, 4, 4x, 12
Resistance to impact	IK10
Certificates and regulations
Directive	2014/35/EU
Norms	UNE-EN 62208,UNE-EN 61439-1

Accessories

Image	Reference	Description
Lifting eyebolts
	48115	M12 lifting eyebolts

	48460	5-mm double-bit key
Total plain mounting plates
	PL165100	Total metal plain mounting plate 1650x1000
Parcial plain mounting plates
	PLP20100	Partial plain metal mounting plate 200x1000
	PLP30100	Partial plain metal mounting plate 300x1000
	PLP40100	Partial plain metal mounting plate 400x1000
	PLP60100	Partial plain metal mounting plate 600x1000
Plate reinforcement kit
	KRPL100	Reinforcement kit for plates width 1000 mm
Accessory packs for plates
	48471	Total plate assembly support
	48472	Partial plate assembly support
Wall-mounting pack
	48113	Wall-mounting brackets
Insulation joint
	48478	Light grey corner finishing joint strip (6 m)
Insulation brush
	48481	Insulation brush (2 m)
Modular frame (without partition)
	BTM165100	Modular frame 1650x1000
Modular frame (with partition door)
	BTM165100/P400	Modular frame 1650x1000 with 400 mm partition door
Covers for modular frame. FIXED MODULAR
	TMF15100	Fixed modular cover 46 mod 150x1000
	TMF20100	Fixed modular cover 46 mod 200x1000
	TMF30100	Fixed modular cover 2x46 mod 300x1000
	TMF40100	Fixed modular cover 2x46 mod 400x1000
Covers for modular frame. FIXED PLAIN
	TCF05100	Fixed blind modular cover 50x1000
	TCF10100	Fixed blind modular cover 100x1000
	TCF15100	Fixed blind modular cover 150x1000
	TCF20100	Fixed blind modular cover 200x1000
	TCF30100	Fixed blind modular cover 300x1000
	TCF40100	Fixed blind modular cover 400x1000
	TCF60100	Fixed blind modular cover 600x1000
Covers for modular frame. MODULAR HINGED
	TMA15100	Modular hinged cover 46 mod 150x1000
	TMA20100	Modular hinged cover 46 mod 200x1000
	TMA30100	Modular hinged cover 2x46 mod 300x1000
	TMA40100	Modular hinged cover 2x46 mod 400x1000
Attachment kit + DIN rail (for modular covers)
	48158	Fixing kit + DIN rail 1000 mm
Horizontal trunking support
	49368	Horizontal duct support

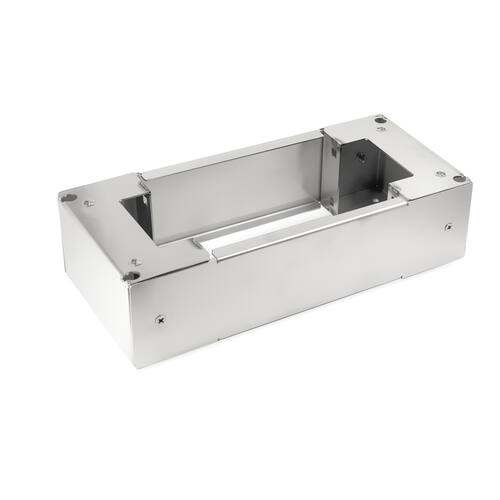

Plinth (stainless steel)
	INXZCLB1010040	BIG stainless steel 304L plinth 100x1000x400
Mounting profiles. FOR MODULAR FRAME
	PMB400	Profile for modular frame
Mounting profiles. OUTSIDE ASSEMBLY
	PME1650	External mounting profile
Mounting profiles. INTERIOR ASSEMBLY
	PMI1650	Internal mounting profile
Mounting profiles. VERTICAL UPRIGHTS FOR BIG CABINETS
	PVB1650	Vertical profile for BIG cabinet
Mounting profiles. FOR DOORS
	PPAP1000	Profile galvanised steel width 1000 mm
Swing tray
	48776	Swing-out tray for PC

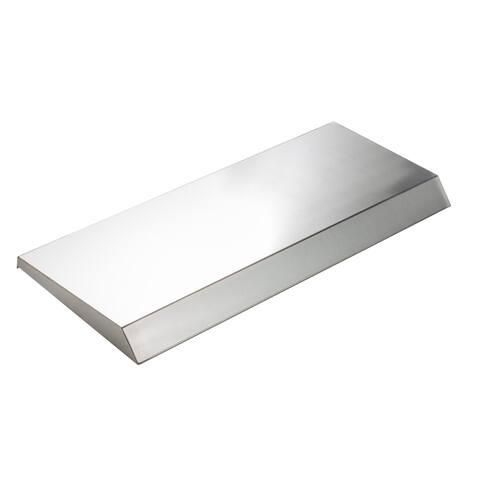

Canopy (stainless steel)
	INXTEJB10040	Stainless steel canopy 1000x400
BIG-INOX locks with handle
	48568	Zamak lever handle (without cylinder)
	48569	Stainless steel lever handle (without cylinder)
	48574	5-mm double-bit profiled cylinder
	48595	Profiled cylinder + key code 333
Door retainer
	48466/B	Door retainer L=230
Door switch with lever
	48462	Door switch with adjustable lever. Screw fixing
Door switch with push button
	48620	Door switch with linear push button. Screw fixing
