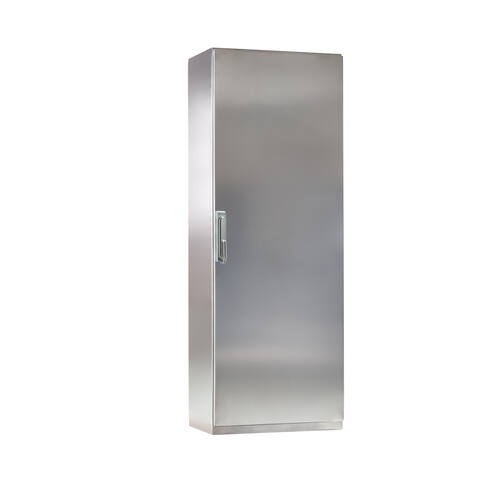

BIG1656040PO/INX

Dimensions (mm)			Door type	With mounting plate
Height	Width	Depth	Door type	With mounting plate
1650	600	400	Single opaque	Yes

Technical data

Technical data
Protection degree	IP65
NEMA degree of protection	1, 4, 4x, 12
Resistance to impact	IK10
Certificates and regulations
Directive	2014/35/EU
Norms	UNE-EN 62208,UNE-EN 61439-1

Accessories

Image	Reference	Description
Lifting eyebolts
	48115	M12 lifting eyebolts

	48460	5-mm double-bit key
Total plain mounting plates
	PL16560	Total metal plain mounting plate 1650x600
Parcial plain mounting plates
	PLP2060	Partial plain metal mounting plate 200x600
	PLP3060	Partial plain metal mounting plate 300x600
	PLP4060	Partial plain metal mounting plate 400x600
	PLP6060	Partial plain metal mounting plate 600x600
Parcial plain horizontal mounting plates
	PLPH2060	Partial plain metal mounting plate for MCCB horizontal 200x600
	PLPH3060	Partial plain metal mounting plate for MCCB horizontal 300x600
Plate reinforcement kit
	KRPL60	Reinforcement kit for plates width 600 mm
Accessory packs for plates
	48471	Total plate assembly support
	48472	Partial plate assembly support
Wall-mounting pack
	48113	Wall-mounting brackets
Insulation joint
	48478	Light grey corner finishing joint strip (6 m)
Insulation brush
	48481	Insulation brush (2 m)
Modular frame (without partition)
	BTM16560	Modular frame 1650x600
Covers for modular frame. FIXED MODULAR
	TMF1560	Fixed modular cover 24 mod 150x600
	TMF2060	Fixed modular cover 24 mod 200x600
	TMF3060	Fixed modular cover 2x24 mod 300x600
	TMF4060	Fixed modular cover 2x24 mod 400x600
Covers for modular frame. FIXED PLAIN
	TCF0560	Fixed blind modular cover 50x600
	TCF1060	Fixed blind modular cover 100x600
	TCF1560	Fixed blind modular cover 150x600
	TCF2060	Fixed blind modular cover 200x600
	TCF3060	Fixed blind modular cover 300x600
	TCF4060	Fixed blind modular cover 400x600
	TCF6060	Fixed blind modular cover 600x600
Covers for modular frame. MODULAR HINGED
	TMA1560	Modular hinged cover 23 mod 150x600
	TMA2060	Modular hinged cover 23 mod 200x600
	TMA3060	Modular hinged cover 2x23 mod 300x600
	TMA4060	Modular hinged cover 2x23 mod 400x600
Attachment kit + DIN rail (for modular covers)
	48154	Fixing kit + DIN rail 600 mm
Vertical trunking support kit
	49366	Vertical duct + DIN rail support 600 mm
Horizontal trunking support
	49368	Horizontal duct support
Plinth (stainless steel)
	INXZCLB106040	BIG stainless steel 304L plinth 100x600x400
Mounting profiles. FOR MODULAR FRAME
	PMB400	Profile for modular frame
Mounting profiles. OUTSIDE ASSEMBLY
	PME1650	External mounting profile
Mounting profiles. INTERIOR ASSEMBLY
	PMI1650	Internal mounting profile
Mounting profiles. VERTICAL UPRIGHTS FOR BIG CABINETS
	PVB1650	Vertical profile for BIG cabinet
Mounting profiles. HORIZONTAL UPRIGHTS FOR BIG CABINETS
	PHB600	Horizontal profile for BIG cabinet INOX
Mounting profiles. FOR DOORS
	PPAP600	Profile galvanised steel width 600 mm
Swing tray
	48776	Swing-out tray for PC
Canopy (stainless steel)
	INXTEJB6040	Stainless steel canopy 600x400
BIG-INOX locks with handle
	48568	Zamak lever handle (without cylinder)
	48569	Stainless steel lever handle (without cylinder)
	48574	5-mm double-bit profiled cylinder
	48595	Profiled cylinder + key code 333
Door retainer
	48466/B	Door retainer L=230
Door switch with lever
	48462	Door switch with adjustable lever. Screw fixing
Door switch with push button
	48620	Door switch with linear push button. Screw fixing
