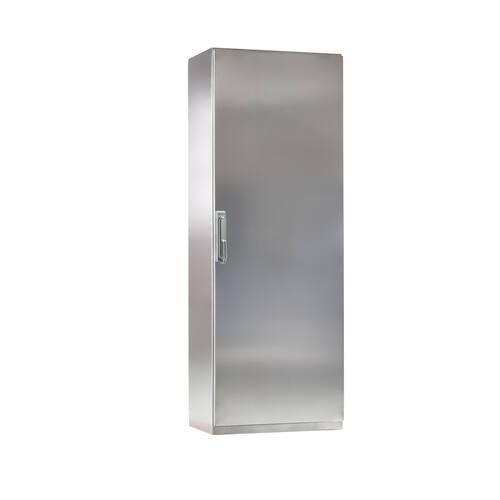

BIG1658040PO/INX

Dimensions (mm)			Door type	With mounting plate
Height	Width	Depth	Door type	With mounting plate
1650	800	400	Single opaque	Yes

Technical data

Technical data
Protection degree	IP65
NEMA degree of protection	1, 4, 4x, 12
Resistance to impact	IK10
Certificates and regulations
Directive	2014/35/EU
Norms	UNE-EN 62208,UNE-EN 61439-1

Accessories

Image	Reference	Description
Lifting eyebolts
	48115	M12 lifting eyebolts

	48460	5-mm double-bit key
Total plain mounting plates
	PL16580	Total metal plain mounting plate 1650x800
Parcial plain mounting plates
	PLP2080	Partial plain metal mounting plate 200x800
	PLP3080	Partial plain metal mounting plate 300x800
	PLP4080	Partial plain metal mounting plate 400x800
	PLP6080	Partial plain metal mounting plate 600x800
Parcial plain horizontal mounting plates
	PLPH2080	Partial plain metal mounting plate for MCCB horizontal 200x800
	PLPH3080	Partial plain metal mounting plate for MCCB horizontal 300x800
Plate reinforcement kit
	KRPL80	Reinforcement kit for plates width 800 mm
Accessory packs for plates
	48471	Total plate assembly support
	48472	Partial plate assembly support
Wall-mounting pack
	48113	Wall-mounting brackets
Insulation joint
	48478	Light grey corner finishing joint strip (6 m)
Insulation brush
	48481	Insulation brush (2 m)
Modular frame (without partition)
	BTM16580	Modular frame 1650x800
Covers for modular frame. FIXED MODULAR
	TMF1580	Fixed modular cover 34 mod 150x800
	TMF2080	Fixed modular cover 34 mod 200x800
	TMF3080	Fixed modular cover 2x34 mod 300x800
	TMF4080	Fixed modular cover 2x34 mod 400x800
Covers for modular frame. FIXED PLAIN
	TCF0580	Fixed blind modular cover 50x800
	TCF1080	Fixed blind modular cover 100x800
	TCF1580	Fixed blind modular cover 150x800
	TCF2080	Fixed blind modular cover 200x800
	TCF3080	Fixed blind modular cover 300x800
	TCF4080	Fixed blind modular cover 400x800
	TCF6080	Fixed blind modular cover 600x800
Covers for modular frame. MODULAR HINGED
	TMA1580	Modular hinged cover 33 mod 150x800
	TMA2080	Modular hinged cover 33 mod 200x800
	TMA3080	Modular hinged cover 2x33 mod 300x800
	TMA4080	Modular hinged cover 2x33 mod 400x800
Attachment kit + DIN rail (for modular covers)
	48156	Fixing kit + DIN rail 800 mm
Vertical trunking support kit
	49367	Vertical duct + DIN rail support 800 mm
Horizontal trunking support
	49368	Horizontal duct support
Plinth (stainless steel)

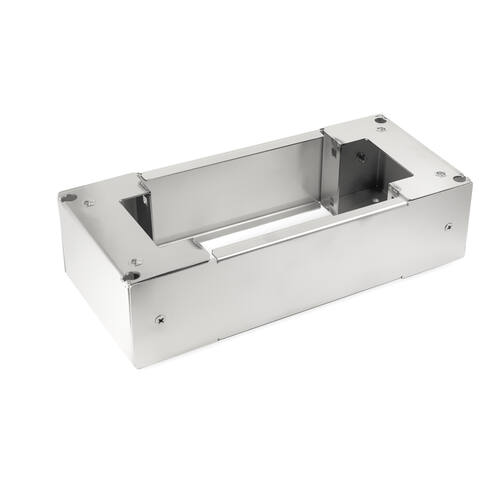

	INXZCLB108040	BIG stainless steel 304L plinth 100x800x400
Mounting profiles. FOR MODULAR FRAME
	PMB400	Profile for modular frame
Mounting profiles. OUTSIDE ASSEMBLY
	PME1650	External mounting profile
Mounting profiles. INTERIOR ASSEMBLY
	PMI1650	Internal mounting profile
Mounting profiles. VERTICAL UPRIGHTS FOR BIG CABINETS
	PVB1650	Vertical profile for BIG cabinet
Mounting profiles. HORIZONTAL UPRIGHTS FOR BIG CABINETS
	PHB800	Horizontal profile for BIG cabinet INOX
Mounting profiles. FOR DOORS
	PPAP800	Profile galvanised steel width 800 mm
Swing tray
	48776	Swing-out tray for PC
Canopy (stainless steel)

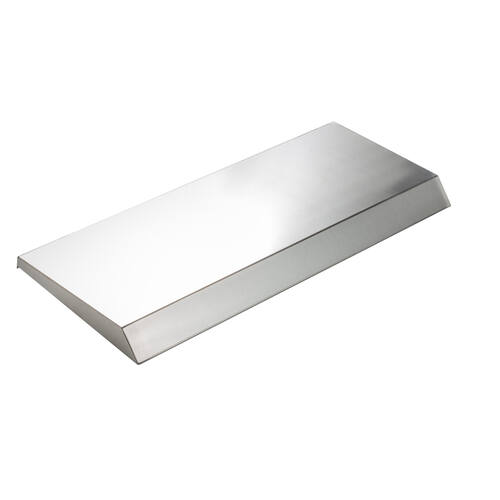

	INXTEJB8040	Stainless steel canopy 800x400
BIG-INOX locks with handle
	48568	Zamak lever handle (without cylinder)
	48569	Stainless steel lever handle (without cylinder)
	48574	5-mm double-bit profiled cylinder
	48595	Profiled cylinder + key code 333
Door retainer
	48466/B	Door retainer L=230
Door switch with lever
	48462	Door switch with adjustable lever. Screw fixing
Door switch with push button
	48620	Door switch with linear push button. Screw fixing
