Reference: BIG18012050POD/INX

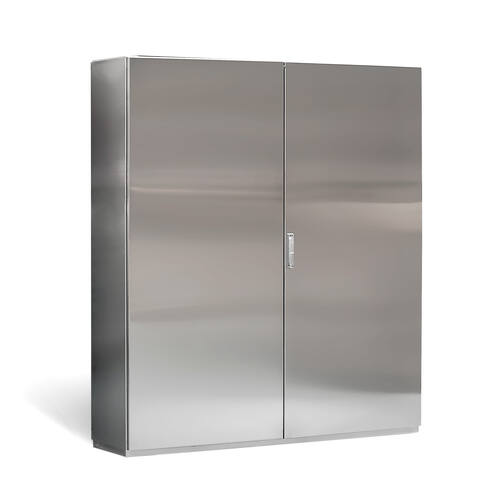

Floor-standing cabinet BIG INX IP55 1800x1200x500. Double door with plate

Dimensions (mm) Door type With mounting plate
Height Width Depth
18001200500Double opaqueYes
BIG18012050POD/INX

Technical data

Technical data
Protection degreeIP55
NEMA degree of protection1, 12
Resistance to impactIK10
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 62208,UNE-EN 61439-1

Accessories

Image Reference Description Data sheet
Lifting eyebolts
48115M12 lifting eyebolts
484605-mm double-bit key
Total plain mounting plates
PL180120Total metal plain mounting plate 1800x1200
Parcial plain mounting plates
PLP20120Partial plain metal mounting plate 200x1200
PLP30120Partial plain metal mounting plate 300x1200
PLP40120Partial plain metal mounting plate 400x1200
PLP60120Partial plain metal mounting plate 600x1200
Plate reinforcement kit
KRPL120Reinforcement kit for plates width 1200 mm
Accessory packs for plates
48471Total plate assembly support
48472Partial plate assembly support
Wall-mounting pack
48113Wall-mounting brackets
Insulation joint
48478Light grey corner finishing joint strip (6 m)
Insulation brush
48481Insulation brush (2 m)
Modular frame (without partition)
BTM180120Modular frame 1800x1200
Modular frame (with partition door)
BTM180120/P400Modular frame 1800x1200 with 400 mm partition door
Horizontal trunking support
49368Horizontal duct support
Plinth (stainless steel)
INXZCLB1012050BIG stainless steel 304L plinth 100x1200x500
Mounting profiles. OUTSIDE ASSEMBLY
PME1800External mounting profile
Mounting profiles. INTERIOR ASSEMBLY
PMI1800Internal mounting profile
Mounting profiles. VERTICAL UPRIGHTS FOR BIG CABINETS
PVB1800Vertical profile for BIG cabinet
Swing tray
48776Swing-out tray for PC
Canopy (stainless steel)
INXTEJB12050Stainless steel canopy 1200x500
Internal lock
48084Double-door internal lock + rod 1800
BIG-INOX locks with handle
48568Zamak lever handle (without cylinder)
48569Stainless steel lever handle (without cylinder)
485745-mm double-bit profiled cylinder
48595Profiled cylinder + key code 333
Door retainer
48466/BDoor retainer L=230
Door switch with lever
48462Door switch with adjustable lever. Screw fixing
Door switch with push button
48620Door switch with linear push button. Screw fixing

Spare parts

Image Reference Description Data sheet
BIG-INOX hinges and retainers
48575 120º standard hinge for BIG-INX
48576 Lock retainer for BIG-INX
48577 Rod control in zamak for BIG-INX
