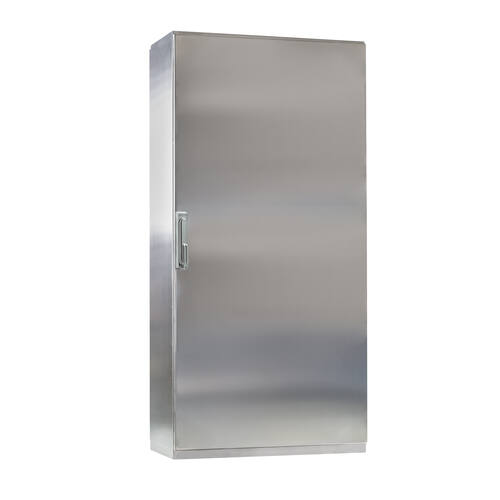

IP65 Stainless steel floor-standing compact cabinets
| Dimensions (mm) | Door type | With mounting plate | ||
|---|---|---|---|---|
| Height (mm) | Width (mm) | Depth (mm) | ||
| 1800 | 600 | 400 | Opaca única | Yes |
Technical data
| Technical data | Protection degree | IP65 | NEMA degree of protection | 1, 4, 4x, 12 | Resistance to impact | IK10 |
|---|---|
| Certificates and regulations | Directive | 2014/35/EU | Norms | UNE-EN 62208,UNE-EN 61439-1 |
Accessories
| Image | Reference | Description | Data sheet |
|---|---|---|---|
| Lifting eyebolts | |||
 | 48115 | Lifting eyes | |
| Total plain mounting plates | |||
 | PL18060 | ||
| Parcial plain mounting plates | |||
 | PLP2060 | ||
 | PLP3060 | ||
 | PLP4060 | ||
 | PLP6060 | ||
| Parcial plain horizontal mounting plates | |||
 | PLPH2060 | ||
 | PLPH3060 | ||
| Plate reinforcement kit | |||
 | KRPL60 | Reinforcement kit for plates width 600 mm | |
| Accessory packs for plates | |||
 | 48471 | Allen screw M8x16 | |
 | 48472 | Allen screw M12x20 | |
| Wall-mounting pack | |||
 | 48113 | Wall fixing (pack 2 units) | |
| Insulation joint | |||
 | 48478 | Lifting eyebolts M12 (Pack 2 pcs) | |
| Insulation brush | |||
 | 48481 | Insulation gasket for ENL cabinet joint (horizontal profiles) (6 m) | |
| Modular frame (without partition) | |||
 | BTM18060 | ||
| Covers for modular frame. FIXED MODULAR | |||
 | TMF1560 | ||
 | TMF2060 | ||
 | TMF3060 | ||
 | TMF4060 | ||
| Covers for modular frame. FIXED PLAIN | |||
 | TCF0560 | ||
 | TCF1060 | ||
 | TCF1560 | ||
 | TCF2060 | ||
 | TCF3060 | ||
 | TCF4060 | ||
 | TCF6060 | ||
| Covers for modular frame. MODULAR HINGED | |||
 | TMA1560 | ||
 | TMA2060 | ||
 | TMA3060 | ||
 | TMA4060 | ||
| Attachment kit + DIN rail (for modular covers) | |||
 | 48154 | Fixing kit + DIN rail 600 mm | |
| Vertical trunking support kit | |||
 | 49366 | Vertical duct + DIN rail support 600 mm | |
| Horizontal trunking support | |||
 | 49368 | Horizontal duct support | |
| Plinth (stainless steel) | |||
 | INXZCLB106040 | ||
| Mounting profiles. FOR MODULAR FRAME | |||
 | PMB400 | Profile for modular frame | |
| Mounting profiles. OUTSIDE ASSEMBLY | |||
 | PME1800 | External mounting profile | |
| Mounting profiles. INTERIOR ASSEMBLY | |||
 | PMI1800 | Internal mounting profile | |
| Keys | |||
 | 48460 | Quarter-turn butterfly closure with key code 333 (surface) | |
| Mounting profiles. VERTICAL UPRIGHTS FOR BIG CABINETS | |||
 | PVB1800 | Vertical profile for BIG cabinet | |
| Mounting profiles. HORIZONTAL UPRIGHTS FOR BIG CABINETS | |||
 | PHB600 | Horizontal profile for BIG cabinet INOX | |
| Mounting profiles. FOR DOORS | |||
 | PPAP600 | ||
| Swing tray | |||
 | 48776 | Swing-out tray for PC | |
| Canopy (stainless steel) | |||
 | INXTEJB6040 | ||
| BIG-INOX locks with handle | |||
 | 48568 | Rod end fitting (Pack of 4 pcs.) | |
 | 48569 | Rod end fitting (Pack of 4 pcs.) | |
 | 48574 | Zamak lock for BIG INOX cabinet | |
 | 48595 | Quarter-turn mailbox key code 405 | |
| Door retainer | |||
 | 48466/B | Argenta Plus series door retainer | |
| Door switch with lever | |||
 | 48462 | Zamak double latch key 5 mm | |
| Door switch with push button | |||
 | 48620 | Door switch with screw fixation Argenta Plus | |
