Reference: 01361

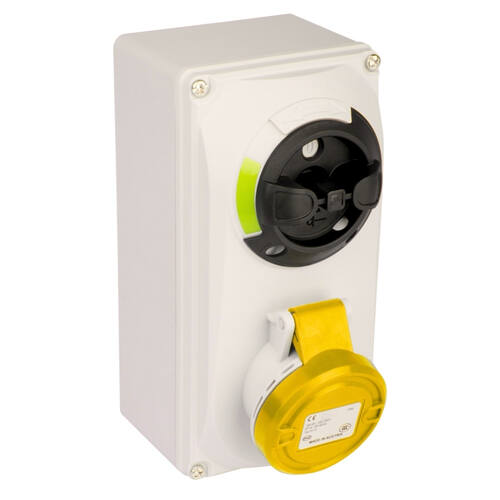

IP44-IP54 Wall interlocking socket 2P+E 100/130V 16A 4H
| Intensidad nominal (A) | Number of poles | Voltage (V) | Time code | Color |
|---|---|---|---|---|
| 16 | 2P+T | 100/130 | 4 | Yellow |
Technical data
| Technical data | Protection degree | IP44-IP54 | Resistance to impact | IK08 | Glow wire resistance (ºC) | 960 | Ball pressure test (ºC) | 125 |
|---|---|
| Certificates and regulations | Directive | 2014/35/EU | Norms | UNE-EN 60309-1; UNE-EN 60309-2; IEC 60884-1 |
