Reference: 01814

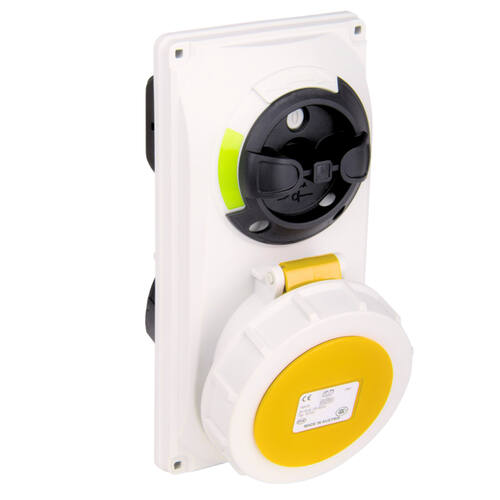

IP66-IP67 flush-fit interlocking socket 2P+E 100/130V 32A 4H
| Intensidad nominal (A) | Number of poles | Voltage (V) | Time code | Color |
|---|---|---|---|---|
| 32 | 2P+T | 100/130 | 4 | Yellow |
Technical data
| Technical data | Protection degree | IP66-IP67 | Resistance to impact | IK08 | Glow wire resistance (ºC) | 960 | Ball pressure test (ºC) | 125 |
|---|---|
| Certificates and regulations | Directive | 2014/35/EU | Norms | UNE-EN 60309-1; UNE-EN 60309-2; IEC 60884-1 |
