Reference: 03352

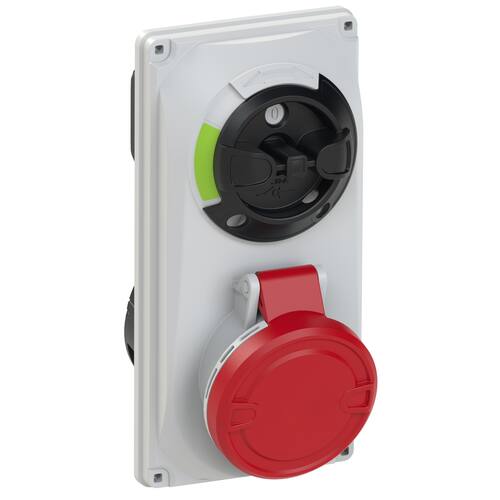

IP44-IP54 Flush-fit interlocking socket 3P+E 380/415V 16A 6H

← Return to the list
Intensidad nominal (A) Number of poles Voltage (V) Time code Color
163P+T380/4156Red
Plan pdf pdf
Plan dxf dxf
Plan 3D 3D
Data sheet pdf
03352

Technical data

Technical data
Protection degreeIP44-IP54
Resistance to impactIK08
Glow wire resistance (ºC)960
Ball pressure test (ºC)125
Certificates and regulations
Directive2014/35/EU
NormsUNE-EN 60309-1; UNE-EN 60309-2; IEC 60884-1
